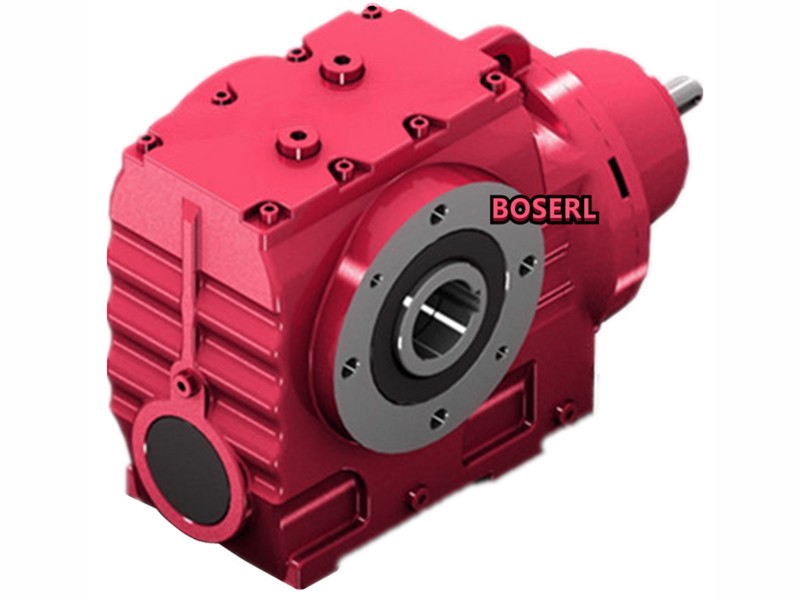

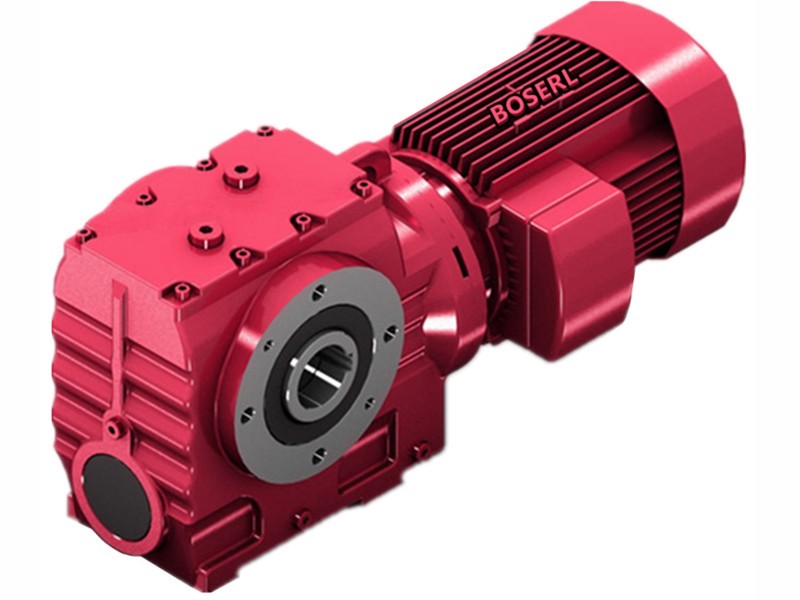

SA98減速電機詳細信息
SA98減速電機
訂購熱線：13360667204
SA98減速電機功率計算公式：齒輪減速馬達
翻轉機參數：滾輪直徑570，翻轉5400公斤，一分鐘翻轉33轉
5400公斤換算成扭矩=5292N.m
5292N.m×0.285滾筒半徑=1508.22N.m
電機轉數1400÷輸出轉數33=42.42比
1508.22N.m輸出扭矩÷42.42比=35.55N.m電機扭矩
35.55N.m電機扭矩換算成功率5.64KW以上
對應的SA98減速機型號參數：
型號：SA98-BVP7.5KW
減速比：44.89
輸出轉數：33轉每分鐘
輸出扭矩：1980N.m
安全系數：1.65
SA98減速電機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）伺服電機連接減速機
SA98蝸輪減速機型號：
SA98減速電機型號參數：自鎖減速機
SA98減速機配1.1KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S97Y1.1KW | 1.1KW | 1.70rpm | 4700N.m | 0.90 |
| S97Y1.1KW | 1.1KW | 2.00rpm | 3360N.m | 1.25 |
| S97Y1.1KW | 1.1KW | 2.30rpm | 3570N.m | 1.15 |
| S97Y1.1KW | 1.1KW | 2.60rpm | 3070N.m | 1.35 |
| S97Y1.1KW | 1.1KW | 2.90rpm | 2780N.m | 1.50 |
| S97Y1.1KW | 1.1KW | 3.40rpm | 2410N.m | 1.75 |
SA98減速機配1.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S97Y1.5KW | 1.5KW | 5.00rpm | 2100N.m | 1.90 |
| S97Y1.5KW | 1.5KW | 5.40rpm | 1940N.m | 2.10 |
| S97Y1.5KW | 1.5KW | 6.20rpm | 1730N.m | 2.30 |
| S97Y1.5KW | 1.5KW | 7.30rpm | 1480N.m | 2.70 |
SA98減速機配2.2KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S97Y2.2KW | 2.2KW | 5.00rpm | 3090N.m | 1.30 |
| S97Y2.2KW | 2.2KW | 5.40rpm | 2850N.m | 1.40 |
| S97Y2.2KW | 2.2KW | 6.20rpm | 2540N.m | 1.55 |
| S97Y2.2KW | 2.2KW | 7.20rpm | 2180N.m | 1.85 |
| S97Y2.2KW | 2.2KW | 7.90rpm | 2020N.m | 1.95 |
| S97Y2.2KW | 2.2KW | 8.80rpm | 1820N.m | 2.10 |
| S97Y2.2KW | 2.2KW | 9.80rpm | 1650N.m | 2.20 |
| S97Y2.2KW | 2.2KW | 11.0rpm | 1500N.m | 2.40 |
| S97Y2.2KW | 2.2KW | 12.0rpm | 1340N.m | 2.60 |
| S97Y2.2KW | 2.2KW | 13.0rpm | 1220N.m | 2.80 |
| S97Y2.2KW | 2.2KW | 16.0rpm | 1040N.m | 3.10 |
SA98減速機配3KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S97Y3KW | 3KW | 5.10rpm | 4140N.m | 0.95 |
| S97Y3KW | 3KW | 5.60rpm | 3820N.m | 1.05 |
| S97Y3KW | 3KW | 6.30rpm | 3410N.m | 1.15 |
| S97Y3KW | 3KW | 7.40rpm | 2920N.m | 1.35 |
| S97Y3KW | 3KW | 8.00rpm | 2710N.m | 1.45 |
| S97Y3KW | 3KW | 9.00rpm | 2440N.m | 1.55 |
| S97Y3KW | 3KW | 10.0rpm | 2210N.m | 1.70 |
| S97Y3KW | 3KW | 11.0rpm | 2010N.m | 1.80 |
| S97Y3KW | 3KW | 12.0rpm | 1800N.m | 1.95 |
| S97Y3KW | 3KW | 14.0rpm | 1630N.m | 2.10 |
| S97Y3KW | 3KW | 16.0rpm | 1390N.m | 2.30 |
| S97Y3KW | 3KW | 18.0rpm | 1410N.m | 2.30 |
SA98減速機配4KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S97Y4KW | 4KW | 6.30rpm | 4530N.m | 0.90 |
| S97Y4KW | 4KW | 7.40rpm | 3890N.m | 1.05 |
| S97Y4KW | 4KW | 8.10rpm | 3600N.m | 1.10 |
| S97Y4KW | 4KW | 9.00rpm | 3240N.m | 1.20 |
| S97Y4KW | 4KW | 10.0rpm | 2940N.m | 1.25 |
| S97Y4KW | 4KW | 11.0rpm | 2680N.m | 1.35 |
| S97Y4KW | 4KW | 12.0rpm | 2390N.m | 1.45 |
| S97Y4KW | 4KW | 14.0rpm | 2170N.m | 1.60 |
| S97Y4KW | 4KW | 16.0rpm | 1850N.m | 1.75 |
| S97Y4KW | 4KW | 18.0rpm | 1880N.m | 1.70 |
| S97Y4KW | 4KW | 20.0rpm | 1670N.m | 1.95 |
| S97Y4KW | 4KW | 24.0rpm | 1420N.m | 2.30 |
| S97Y4KW | 4KW | 26.0rpm | 1310N.m | 2.50 |
SA98減速機配5.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S97Y5.5KW | 5.5KW | 9.00rpm | 4470N.m | 0.85 |
| S97Y5.5KW | 5.5KW | 10.0rpm | 4050N.m | 0.90 |
| S97Y5.5KW | 5.5KW | 11.0rpm | 3690N.m | 1.00 |
| S97Y5.5KW | 5.5KW | 12.0rpm | 3300N.m | 1.05 |
| S97Y5.5KW | 5.5KW | 14.0rpm | 3000N.m | 1.15 |
| S97Y5.5KW | 5.5KW | 16.0rpm | 2560N.m | 1.25 |
| S97Y5.5KW | 5.5KW | 19.0rpm | 2250N.m | 1.35 |
| S97Y5.5KW | 5.5KW | 22.0rpm | 1900N.m | 1.55 |
| S97Y5.5KW | 5.5KW | 20.0rpm | 2300N.m | 1.45 |
| S97Y5.5KW | 5.5KW | 24.0rpm | 1960N.m | 1.70 |
| S97Y5.5KW | 5.5KW | 26.0rpm | 1810N.m | 1.80 |
| S97Y5.5KW | 5.5KW | 29.0rpm | 1620N.m | 2.00 |
| S97Y5.5KW | 5.5KW | 32.0rpm | 1470N.m | 2.20 |
| S97Y5.5KW | 5.5KW | 36.0rpm | 1330N.m | 2.50 |
SA98減速機配7.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S97Y7.5KW | 7.5KW | 14.0rpm | 4050N.m | 0.85 |
| S97Y7.5KW | 7.5KW | 16.0rpm | 3460N.m | 0.95 |
| S97Y7.5KW | 7.5KW | 19.0rpm | 3040N.m | 1.00 |
| S97Y7.5KW | 7.5KW | 22.0rpm | 2560N.m | 1.15 |
| S97Y7.5KW | 7.5KW | 21.0rpm | 3110N.m | 1.05 |
| S97Y7.5KW | 7.5KW | 24.0rpm | 2650N.m | 1.25 |
| S97Y7.5KW | 7.5KW | 26.0rpm | 2450N.m | 1.35 |
| S97Y7.5KW | 7.5KW | 29.0rpm | 2190N.m | 1.50 |
| S97Y7.5KW | 7.5KW | 33.0rpm | 1980N.m | 1.65 |
| S97Y7.5KW | 7.5KW | 36.0rpm | 1800N.m | 1.85 |
| S97Y7.5KW | 7.5KW | 41.0rpm | 1600N.m | 2.10 |
| S97Y7.5KW | 7.5KW | 45.0rpm | 1450N.m | 2.20 |
| S97Y7.5KW | 7.5KW | 56.0rpm | 1200N.m | 2.20 |
| S97Y7.5KW | 7.5KW | 62.0rpm | 1080N.m | 2.40 |
| S97Y7.5KW | 7.5KW | 69.0rpm | 970N.m | 2.70 |
| S97Y7.5KW | 7.5KW | 76.0rpm | 880N.m | 2.90 |
SA98減速機配11KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S97Y11KW | 11KW | 26.0rpm | 3580N.m | 0.90 |
| S97Y11KW | 11KW | 30.0rpm | 3210N.m | 1.05 |
| S97Y11KW | 11KW | 33.0rpm | 2900N.m | 1.15 |
| S97Y11KW | 11KW | 36.0rpm | 2630N.m | 1.25 |
| S97Y11KW | 11KW | 41.0rpm | 2340N.m | 1.40 |
| S97Y11KW | 11KW | 45.0rpm | 2120N.m | 1.50 |
| S97Y11KW | 11KW | 56.0rpm | 1760N.m | 1.45 |
| S97Y11KW | 11KW | 63.0rpm | 1580N.m | 1.65 |
| S97Y11KW | 11KW | 69.0rpm | 1420N.m | 1.80 |
| S97Y11KW | 11KW | 77.0rpm | 1290N.m | 2.00 |
| S97Y11KW | 11KW | 86.0rpm | 1140N.m | 2.20 |
| S97Y11KW | 11KW | 96.0rpm | 1040N.m | 2.40 |
| S97Y11KW | 11KW | 113rpm | 880N.m | 2.60 |
| S97Y11KW | 11KW | 129rpm | 770N.m | 2.90 |
SA98減速機配15KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S97Y15KW | 15KW | 33.0rpm | 3980N.m | 0.85 |
| S97Y15KW | 15KW | 36.0rpm | 3610N.m | 0.90 |
| S97Y15KW | 15KW | 41.0rpm | 3210N.m | 1.05 |
| S97Y15KW | 15KW | 45.0rpm | 2910N.m | 1.10 |
| S97Y15KW | 15KW | 56.0rpm | 2420N.m | 1.05 |
| S97Y15KW | 15KW | 62.0rpm | 2170N.m | 1.20 |
| S97Y15KW | 15KW | 69.0rpm | 1950N.m | 1.35 |
| S97Y15KW | 15KW | 76.0rpm | 1770N.m | 1.45 |
| S97Y15KW | 15KW | 86.0rpm | 1570N.m | 1.65 |
| S97Y15KW | 15KW | 95.0rpm | 1420N.m | 1.75 |
| S97Y15KW | 15KW | 112rpm | 1210N.m | 1.90 |
| S97Y15KW | 15KW | 128rpm | 1060N.m | 2.10 |
| S97Y15KW | 15KW | 153rpm | 880N.m | 2.30 |
| S97Y15KW | 15KW | 177rpm | 770N.m | 2.30 |
SA98減速機配18.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S97Y18.5KW | 18.5KW | 41.0rpm | 3960N.m | 0.85 |
| S97Y18.5KW | 18.5KW | 45.0rpm | 3590N.m | 0.90 |
| S97Y18.5KW | 18.5KW | 53.0rpm | 3050N.m | 1.00 |
| S97Y18.5KW | 18.5KW | 61.0rpm | 2670N.m | 1.05 |
| S97Y18.5KW | 18.5KW | 69.0rpm | 2410N.m | 1.10 |
| S97Y18.5KW | 18.5KW | 76.0rpm | 2190N.m | 1.20 |
| S97Y18.5KW | 18.5KW | 86.0rpm | 1940N.m | 1.30 |
| S97Y18.5KW | 18.5KW | 95.0rpm | 1760N.m | 1.40 |
| S97Y18.5KW | 18.5KW | 112rpm | 1490N.m | 1.55 |
| S97Y18.5KW | 18.5KW | 128rpm | 1300N.m | 1.70 |
| S97Y18.5KW | 18.5KW | 153rpm | 1090N.m | 1.85 |
| S97Y18.5KW | 18.5KW | 177rpm | 950N.m | 1.85 |
SA98減速機配22KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S97Y22KW | 22KW | 53.0rpm | 3610N.m | 0.85 |
| S97Y22KW | 22KW | 61.0rpm | 3160N.m | 0.90 |
| S97Y22KW | 22KW | 69.0rpm | 2850N.m | 0.90 |
| S97Y22KW | 22KW | 77.0rpm | 2580N.m | 1.00 |
| S97Y22KW | 22KW | 86.0rpm | 2290N.m | 1.10 |
| S97Y22KW | 22KW | 96.0rpm | 2080N.m | 1.20 |
| S97Y22KW | 22KW | 113rpm | 1760N.m | 1.30 |
| S97Y22KW | 22KW | 129rpm | 1540N.m | 1.45 |
| S97Y22KW | 22KW | 155rpm | 1290N.m | 1.60 |
| S97Y22KW | 22KW | 178rpm | 1120N.m | 1.60 |
SA98減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：S98減速機
關鍵詞:GSA系列減速機配電機一體式_伺服電機連接減速機_私服電機配減速機_SA系列減速機_私服電機減速機_SA系列減速器_伺服電機連接減速器_私服減速機_私服電機減速器
SA系列蝸輪蝸桿減速機型號：SA38減速機,SA48減速機,SA58減速機,SA68減速機,SA78減速機,SA88減速機,SA98齒輪減速馬達
SA系列自鎖減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
