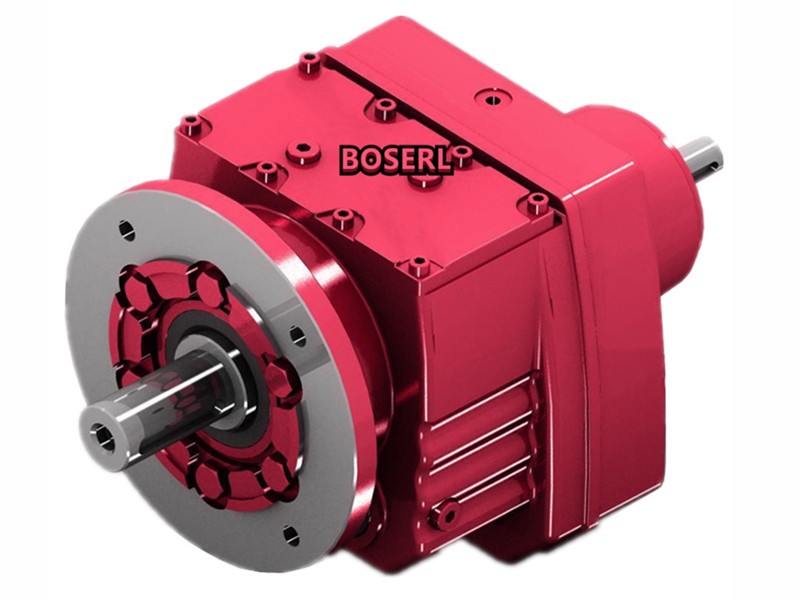

RF88減速電機詳細信息
RF88減速電機
訂購熱線：13360667204
RF88減速電機功率計算公式：齒輪減速馬達
電軌車參數：鏈輪直徑190，帶動1.3噸，每分鐘運行16米
16米÷（0.19鏈輪直徑×3.14）=26.82轉每分鐘
1.3噸換算成N=13000N
13000×0.095鏈輪半徑×0.3橡膠輪水泥路的摩擦系數=379.5N.m
通常確保萬無一失，我們會把輸出扭矩放大兩倍379.5×2=741N.m
電機轉數1400÷輸出轉數26.82=52.2比
741N.m輸出扭矩÷52.2比=14.2N.m電機扭矩
14.2N.m電機扭矩?fù)Q算成功率2.25KW左右
對應的RF88減速機型號參數：
型號：RF88-BEJ3KW
減速比：52.82
輸出轉數：28轉每分鐘
輸出扭矩：1030N.m
安全系數：1.5
RF88減速機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）RF系列減速機
RF88斜齒輪硬齒面減速機型號：

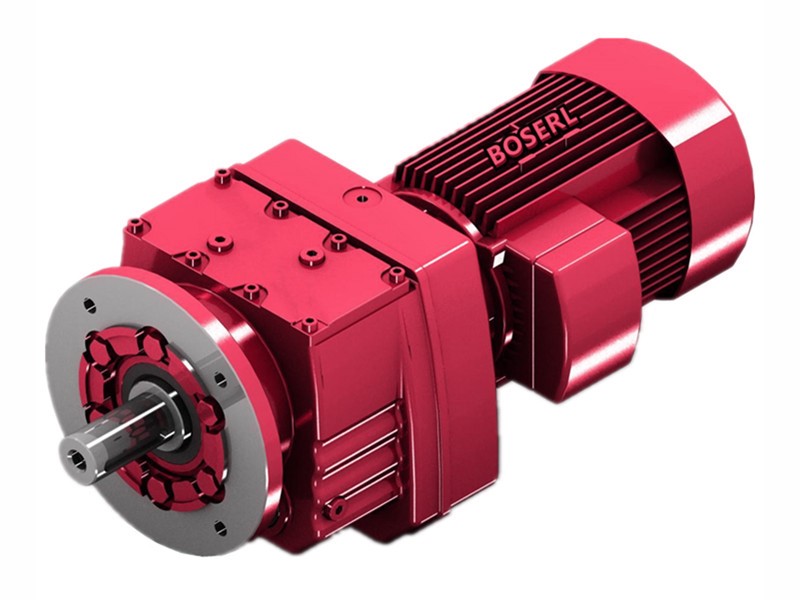

RF88減速電機型號參數：同軸斜齒輪減速電機
RF88減速機配0.37KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF88-Y0.37KW | 246.54 | 0.37KW | 73.5kg | 20000N |
| RF88-Y0.37KW | 216.54 | 0.37KW | 73.5kg | 20000N |
| RF88-Y0.37KW | 205.71 | 0.37KW | 73.5kg | 20000N |
| RF88-Y0.37KW | 181.77 | 0.37KW | 73.5kg | 20000N |
| RF88-Y0.37KW | 155.34 | 0.37KW | 73.5kg | 20000N |
| RF88-Y0.37KW | 142.41 | 0.37KW | 73.5kg | 20000N |
RF88減速機配0.55KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF88-Y0.55KW | 246.54 | 0.55KW | 78kg | 20000N |
| RF88-Y0.55KW | 216.54 | 0.55KW | 78kg | 20000N |
| RF88-Y0.55KW | 205.71 | 0.55KW | 78kg | 20000N |
| RF88-Y0.55KW | 181.77 | 0.55KW | 78kg | 20000N |
| RF88-Y0.55KW | 155.34 | 0.55KW | 78kg | 20000N |
| RF88-Y0.55KW | 142.41 | 0.55KW | 78kg | 20000N |
| RF88-Y0.55KW | 124.97 | 0.55KW | 78kg | 20000N |
| RF88-Y0.55KW | 118.43 | 0.55KW | 78kg | 20000N |
| RF88-Y0.55KW | 103.65 | 0.55KW | 78kg | 20000N |
RF88減速機配0.75KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF88-Y0.75KW | 246.54 | 0.75KW | 79kg | 18800N |
| RF88-Y0.75KW | 216.54 | 0.75KW | 79kg | 19500N |
| RF88-Y0.75KW | 205.71 | 0.75KW | 79kg | 19700N |
| RF88-Y0.75KW | 181.77 | 0.75KW | 79kg | 20000N |
| RF88-Y0.75KW | 155.34 | 0.75KW | 79kg | 20000N |
| RF88-Y0.75KW | 142.41 | 0.75KW | 79kg | 20000N |
| RF88-Y0.75KW | 124.97 | 0.75KW | 79kg | 20000N |
| RF88-Y0.75KW | 118.43 | 0.75KW | 79kg | 20000N |
| RF88-Y0.75KW | 103.65 | 0.75KW | 79kg | 20000N |
| RF88-Y0.75KW | 93.38 | 0.75KW | 79kg | 20000N |
RF88減速機配1.1KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF88-Y1.1KW | 216.54 | 1.1KW | 83kg | 16600N |
| RF88-Y1.1KW | 205.71 | 1.1KW | 83kg | 17100N |
| RF88-Y1.1KW | 181.77 | 1.1KW | 83kg | 18200N |
| RF88-Y1.1KW | 155.34 | 1.1KW | 83kg | 19200N |
| RF88-Y1.1KW | 142.41 | 1.1KW | 83kg | 19600N |
| RF88-Y1.1KW | 124.97 | 1.1KW | 83kg | 20000N |
| RF88-Y1.1KW | 118.43 | 1.1KW | 83kg | 20000N |
| RF88-Y1.1KW | 103.65 | 1.1KW | 83kg | 20000N |
| RF88-Y1.1KW | 93.38 | 1.1KW | 83kg | 20000N |
| RF88-Y1.1KW | 81.92 | 1.1KW | 83kg | 20000N |
| RF88-Y1.1KW | 72.57 | 1.1KW | 83kg | 20000N |
| RF88-Y1.1KW | 63.68 | 1.1KW | 83kg | 20000N |
| RF88-Y1.1KW | 60.35 | 1.1KW | 83kg | 20000N |
| RF88-Y1.1KW | 52.82 | 1.1KW | 83kg | 20000N |
RF88減速機配1.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF88-Y1.5KW | 181.77 | 1.5KW | 86kg | 13200N |
| RF88-Y1.5KW | 155.34 | 1.5KW | 86kg | 16900N |
| RF88-Y1.5KW | 142.41 | 1.5KW | 86kg | 17700N |
| RF88-Y1.5KW | 124.97 | 1.5KW | 86kg | 18700N |
| RF88-Y1.5KW | 118.43 | 1.5KW | 86kg | 19000N |
| RF88-Y1.5KW | 103.65 | 1.5KW | 86kg | 19700N |
| RF88-Y1.5KW | 93.38 | 1.5KW | 86kg | 20000N |
| RF88-Y1.5KW | 81.92 | 1.5KW | 86kg | 20000N |
| RF88-Y1.5KW | 72.57 | 1.5KW | 86kg | 20000N |
| RF88-Y1.5KW | 63.68 | 1.5KW | 86kg | 20000N |
| RF88-Y1.5KW | 60.35 | 1.5KW | 86kg | 20000N |
| RF88-Y1.5KW | 52.82 | 1.5KW | 86kg | 20000N |
| RF88-Y1.5KW | 47.58 | 1.5KW | 86kg | 20000N |
| RF88-Y1.5KW | 41.74 | 1.5KW | 86kg | 20000N |
| RF88-Y1.5KW | 36.84 | 1.5KW | 86kg | 20000N |
RF88減速機配2.2KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF88-Y2.2KW | 124.97 | 2.2KW | 96kg | 11700N |
| RF88-Y2.2KW | 118.43 | 2.2KW | 96kg | 15400N |
| RF88-Y2.2KW | 103.65 | 2.2KW | 96kg | 17100N |
| RF88-Y2.2KW | 93.38 | 2.2KW | 96kg | 18000N |
| RF88-Y2.2KW | 81.92 | 2.2KW | 96kg | 18900N |
| RF88-Y2.2KW | 72.57 | 2.2KW | 96kg | 19600N |
| RF88-Y2.2KW | 63.68 | 2.2KW | 96kg | 20000N |
| RF88-Y2.2KW | 60.35 | 2.2KW | 96kg | 20000N |
| RF88-Y2.2KW | 52.82 | 2.2KW | 96kg | 20000N |
| RF88-Y2.2KW | 47.58 | 2.2KW | 96kg | 20000N |
| RF88-Y2.2KW | 41.74 | 2.2KW | 96kg | 19800N |
| RF88-Y2.2KW | 36.84 | 2.2KW | 96kg | 19100N |
| RF88-Y2.2KW | 32.66 | 2.2KW | 96kg | 18500N |
| RF88-Y2.2KW | 34.4 | 2.2KW | 96kg | 18800N |
| RF88-Y2.2KW | 31.4 | 2.2KW | 96kg | 18300N |
| RF88-Y2.2KW | 27.84 | 2.2KW | 96kg | 17600N |
| RF88-Y2.2KW | 23.4 | 2.2KW | 96kg | 16700N |
| RF88-Y2.2KW | 21.51 | 2.2KW | 96kg | 16300N |
RF88減速機配3KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF88-Y3KW | 93.38 | 3KW | 98kg | 12000N |
| RF88-Y3KW | 81.92 | 3KW | 98kg | 16500N |
| RF88-Y3KW | 72.57 | 3KW | 98kg | 17700N |
| RF88-Y3KW | 63.68 | 3KW | 98kg | 18700N |
| RF88-Y3KW | 60.35 | 3KW | 98kg | 19000N |
| RF88-Y3KW | 52.82 | 3KW | 98kg | 19700N |
| RF88-Y3KW | 47.58 | 3KW | 98kg | 19800N |
| RF88-Y3KW | 41.74 | 3KW | 98kg | 19200N |
| RF88-Y3KW | 36.84 | 3KW | 98kg | 18500N |
| RF88-Y3KW | 32.66 | 3KW | 98kg | 17900N |
| RF88-Y3KW | 27.88 | 3KW | 98kg | 17200N |
| RF88-Y3KW | 34.4 | 3KW | 98kg | 18200N |
| RF88-Y3KW | 31.4 | 3KW | 98kg | 17800N |
| RF88-Y3KW | 27.84 | 3KW | 98kg | 17200N |
| RF88-Y3KW | 23.4 | 3KW | 98kg | 16300N |
| RF88-Y3KW | 21.51 | 3KW | 98kg | 15900N |
| RF88-Y3KW | 19.1 | 3KW | 98kg | 15400N |
| RF88-Y3KW | 17.08 | 3KW | 98kg | 14900N |
| RF88-Y3KW | 15.35 | 3KW | 98kg | 14400N |
RF88減速機配4KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF88-Y4KW | 63.68 | 4KW | 109kg | 13600N |
| RF88-Y4KW | 60.35 | 4KW | 109kg | 14200N |
| RF88-Y4KW | 52.82 | 4KW | 109kg | 15500N |
| RF88-Y4KW | 47.58 | 4KW | 109kg | 16200N |
| RF88-Y4KW | 41.74 | 4KW | 109kg | 17000N |
| RF88-Y4KW | 36.84 | 4KW | 109kg | 17500N |
| RF88-Y4KW | 32.66 | 4KW | 109kg | 17400N |
| RF88-Y4KW | 27.88 | 4KW | 109kg | 16700N |
| RF88-Y4KW | 34.4 | 4KW | 109kg | 17600N |
| RF88-Y4KW | 31.4 | 4KW | 109kg | 17200N |
| RF88-Y4KW | 27.84 | 4KW | 109kg | 16700N |
| RF88-Y4KW | 23.4 | 4KW | 109kg | 16000N |
| RF88-Y4KW | 21.51 | 4KW | 109kg | 15600N |
| RF88-Y4KW | 19.1 | 4KW | 109kg | 15100N |
| RF88-Y4KW | 17.08 | 4KW | 109kg | 14600N |
| RF88-Y4KW | 15.35 | 4KW | 109kg | 14200N |
| RF88-Y4KW | 13.33 | 4KW | 109kg | 13600N |
| RF88-Y4KW | 11.93 | 4KW | 109kg | 13200N |
RF88減速機配5.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF88-Y5.5KW | 47.58 | 5.5KW | 123kg | 15700N |
| RF88-Y5.5KW | 41.74 | 5.5KW | 123kg | 17200N |
| RF88-Y5.5KW | 36.84 | 5.5KW | 123kg | 17100N |
| RF88-Y5.5KW | 32.66 | 5.5KW | 123kg | 16700N |
| RF88-Y5.5KW | 27.88 | 5.5KW | 123kg | 16100N |
| RF88-Y5.5KW | 27.84 | 5.5KW | 123kg | 16100N |
| RF88-Y5.5KW | 23.4 | 5.5KW | 123kg | 15400N |
| RF88-Y5.5KW | 21.51 | 5.5KW | 123kg | 15100N |
| RF88-Y5.5KW | 19.1 | 5.5KW | 123kg | 14600N |
| RF88-Y5.5KW | 17.08 | 5.5KW | 123kg | 14200N |
| RF88-Y5.5KW | 15.35 | 5.5KW | 123kg | 13800N |
| RF88-Y5.5KW | 13.33 | 5.5KW | 123kg | 13300N |
| RF88-Y5.5KW | 11.93 | 5.5KW | 123kg | 12900N |
| RF88-Y5.5KW | 9.9 | 5.5KW | 123kg | 12200N |
| RF88-Y5.5KW | 9.14 | 5.5KW | 123kg | 12100N |
| RF88-Y5.5KW | 8.22 | 5.5KW | 123kg | 11700N |
| RF88-Y5.5KW | 7.13 | 5.5KW | 123kg | 11200N |
RF88減速機配7.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF88-Y7.5KW | 36.84 | 7.5KW | 136kg | 14800N |
| RF88-Y7.5KW | 32.66 | 7.5KW | 136kg | 15600N |
| RF88-Y7.5KW | 27.88 | 7.5KW | 136kg | 15200N |
| RF88-Y7.5KW | 27.84 | 7.5KW | 136kg | 15200N |
| RF88-Y7.5KW | 23.4 | 7.5KW | 136kg | 14600N |
| RF88-Y7.5KW | 21.51 | 7.5KW | 136kg | 14400N |
| RF88-Y7.5KW | 19.1 | 7.5KW | 136kg | 14000N |
| RF88-Y7.5KW | 17.08 | 7.5KW | 136kg | 13600N |
| RF88-Y7.5KW | 15.35 | 7.5KW | 136kg | 12600N |
| RF88-Y7.5KW | 13.33 | 7.5KW | 136kg | 12800N |
| RF88-Y7.5KW | 11.93 | 7.5KW | 136kg | 12500N |
| RF88-Y7.5KW | 9.9 | 7.5KW | 136kg | 11900N |
| RF88-Y7.5KW | 9.14 | 7.5KW | 136kg | 11800N |
| RF88-Y7.5KW | 8.22 | 7.5KW | 136kg | 11500N |
| RF88-Y7.5KW | 7.13 | 7.5KW | 136kg | 11000N |
| RF88-Y7.5KW | 6.39 | 7.5KW | 136kg | 10700N |
| RF88-Y7.5KW | 5.3 | 7.5KW | 136kg | 10100N |
RF88減速機配11KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF88-Y11KW | 21.51 | 11KW | 178kg | 13200N |
| RF88-Y11KW | 19.1 | 11KW | 178kg | 12900N |
| RF88-Y11KW | 17.08 | 11KW | 178kg | 12700N |
| RF88-Y11KW | 15.35 | 11KW | 178kg | 12500N |
| RF88-Y11KW | 13.33 | 11KW | 178kg | 12100N |
| RF88-Y11KW | 11.93 | 11KW | 178kg | 11800N |
| RF88-Y11KW | 9.9 | 11KW | 178kg | 11300N |
| RF88-Y11KW | 9.14 | 11KW | 178kg | 11400N |
| RF88-Y11KW | 8.22 | 11KW | 178kg | 11100N |
| RF88-Y11KW | 7.13 | 11KW | 178kg | 10700N |
| RF88-Y11KW | 6.39 | 11KW | 178kg | 10400N |
| RF88-Y11KW | 5.3 | 11KW | 178kg | 9840N |
RF88減速機配15KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF88-Y15KW | 17.08 | 15KW | 198kg | 11600N |
| RF88-Y15KW | 15.35 | 15KW | 198kg | 11500N |
| RF88-Y15KW | 13.33 | 15KW | 198kg | 11300N |
| RF88-Y15KW | 11.93 | 15KW | 198kg | 11100N |
| RF88-Y15KW | 9.9 | 15KW | 198kg | 10700N |
| RF88-Y15KW | 9.14 | 15KW | 198kg | 11000N |
| RF88-Y15KW | 8.22 | 15KW | 198kg | 10700N |
| RF88-Y15KW | 7.13 | 15KW | 198kg | 10300N |
| RF88-Y15KW | 6.39 | 15KW | 198kg | 10100N |
| RF88-Y15KW | 5.3 | 15KW | 198kg | 9590N |
RF88減速機配18.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF88-Y18.5KW | 13.33 | 18.5KW | 235Kg | 10600N |
| RF88-Y18.5KW | 11.93 | 18.5KW | 235Kg | 10400N |
| RF88-Y18.5KW | 9.9 | 18.5KW | 235Kg | 10200N |
| RF88-Y18.5KW | 9.14 | 18.5KW | 235Kg | 10600N |
| RF88-Y18.5KW | 8.22 | 18.5KW | 235Kg | 10300N |
| RF88-Y18.5KW | 7.13 | 18.5KW | 235Kg | 10000N |
| RF88-Y18.5KW | 6.39 | 18.5KW | 235Kg | 9770N |
| RF88-Y18.5KW | 5.3 | 18.5KW | 235Kg | 9350N |
RF88減速機配22KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF88-Y22KW | 9.9 | 22KW | 248Kg | 9640N |
| RF88-Y22KW | 9.14 | 22KW | 248Kg | 10100N |
| RF88-Y22KW | 8.22 | 22KW | 248Kg | 9950N |
| RF88-Y22KW | 7.13 | 22KW | 248Kg | 9680N |
| RF88-Y22KW | 6.39 | 22KW | 248Kg | 9470N |
| RF88-Y22KW | 5.3 | 22KW | 248Kg | 9100N |
RF88減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：R88減速機
關鍵詞:GRF系列減速機立式一體式_直線輸出減速機配電機_RF系列減速器_直連電機減速機_直連減速機_直連減速器_直聯減速機_RF系列減速機_RF型減速機_RF齒輪減速馬達
RF系列減速機型號：RF18減速機,RF28減速機,RF38減速機,RF48減速機,RF58減速機,RF68減速機,RF78減速機,RF88減速機,RF98減速機,RF108減速機,RF138減速機,RF148減速機,RF168減速機
RF系列斜齒輪減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: RF88減速電機 RF87斜齒輪硬齒面減速機 RF87減速機功率 RF87減速機基座尺寸 RF87減速機模型 RF87減速機型號參數
