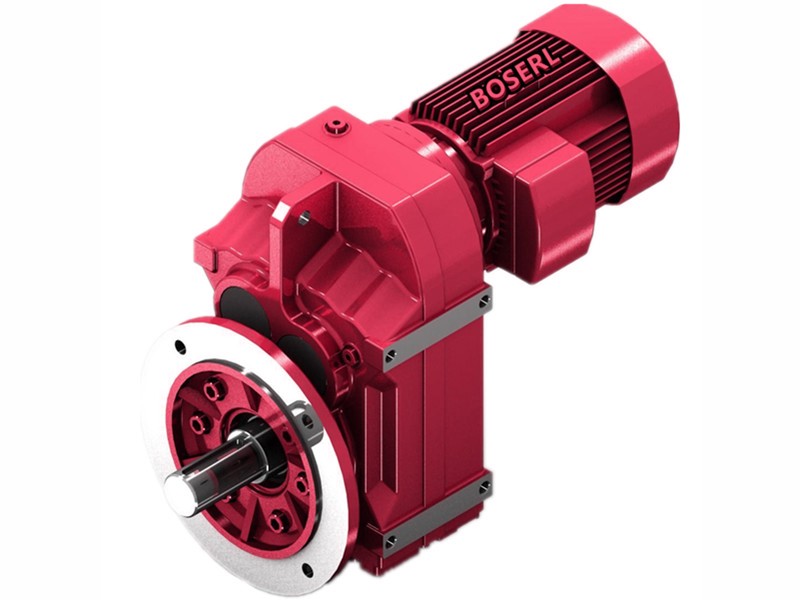

FF78減速電機詳細信息
FF78減速電機
訂購熱線：13360667204
FF78減速電機基座參數計算公式：齒輪減速馬達
轉角滾筒輸送帶參數：負載6600Kg，傳送筒直徑φ93mm，轉動速度0.68m/s
運輸速度0.51m×60s=30.6m每分鐘
3.14(圓周率)×0.105m(傳送筒直徑φ105mm)=0.3297m
30.6m÷0.3297m=92.81r/min輸出轉數
傳送物料6500Kg換算成N=63700n
63700n×0.0525傳送筒半徑×0.06摩擦系數=200.655×2=401.31N.m輸出扭矩
1400電機輸入轉速÷92.81r/min=15.08減速比
401.31N.m輸出扭矩÷15.08減速比=26.61N.m電機扭矩
26.61N.m電機扭矩?fù)Q算成電機功率=4.22KW左右
對應的FF78減速電機功率型號：
型號：FF78-BEJ5.5KW
減速比：15.64
輸出轉數：93rpm
輸出扭矩：560N.m
安全系數：2.7
FF78減速電機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）平行軸斜齒輪減速機

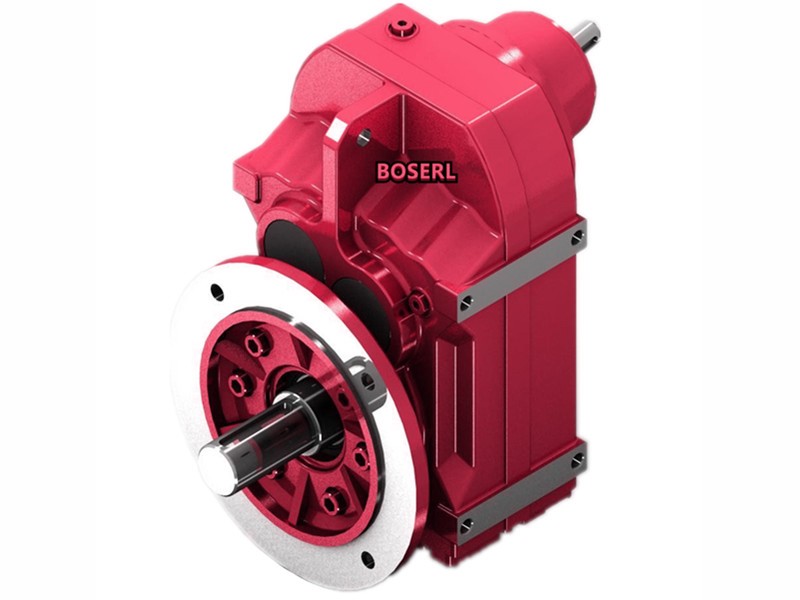

FF78平行軸減速機型號：
FF78減速電機型號參數：剎車電機減速機
FF78減速機配0.37KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF78-Y0.37KW | 281.71 | 0.37KW | 100.5kg | 19200N |
| FF78-Y0.37KW | 262.93 | 0.37KW | 100.5kg | 19300N |
| FF78-Y0.37KW | 225.79 | 0.37KW | 100.5kg | 19500N |
| FF78-Y0.37KW | 198.31 | 0.37KW | 100.5kg | 19700N |
FF78減速機配0.55KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF78-Y0.55KW | 225.79 | 0.55KW | 105kg | 18800N |
| FF78-Y0.55KW | 198.31 | 0.55KW | 105kg | 19100N |
| FF78-Y0.55KW | 188.40 | 0.55KW | 105kg | 19200N |
| FF78-Y0.55KW | 166.47 | 0.55KW | 105kg | 19400N |
| FF78-Y0.55KW | 142.27 | 0.55KW | 105kg | 19600N |
| FF78-Y0.55KW | 130.42 | 0.55KW | 105kg | 19700N |
| FF78-Y0.55KW | 114.45 | 0.55KW | 105kg | 19800N |
| FF78-Y0.55KW | 108.46 | 0.55KW | 105kg | 19800N |
| FF78-Y0.55KW | 94.93 | 0.55KW | 105kg | 19900N |
FF78減速機配0.75KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF78-Y0.75KW | 225.79 | 0.75KW | 106kg | 17800N |
| FF78-Y0.75KW | 198.31 | 0.75KW | 106kg | 18300N |
| FF78-Y0.75KW | 188.40 | 0.75KW | 106kg | 18500N |
| FF78-Y0.75KW | 166.47 | 0.75KW | 106kg | 18900N |
| FF78-Y0.75KW | 142.27 | 0.75KW | 106kg | 19200N |
| FF78-Y0.75KW | 130.42 | 0.75KW | 106kg | 19400N |
| FF78-Y0.75KW | 114.45 | 0.75KW | 106kg | 19600N |
| FF78-Y0.75KW | 108.46 | 0.75KW | 106kg | 19600N |
FF78減速機配1.1KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF78-Y1.1KW | 198.31 | 1.1KW | 110kg | 15900N |
| FF78-Y1.1KW | 188.40 | 1.1KW | 110kg | 16400N |
| FF78-Y1.1KW | 166.47 | 1.1KW | 110kg | 17300N |
| FF78-Y1.1KW | 142.27 | 1.1KW | 110kg | 18100N |
| FF78-Y1.1KW | 130.42 | 1.1KW | 110kg | 18400N |
| FF78-Y1.1KW | 114.45 | 1.1KW | 110kg | 18800N |
| FF78-Y1.1KW | 108.46 | 1.1KW | 110kg | 19000N |
| FF78-Y1.1KW | 94.93 | 1.1KW | 110kg | 19300N |
| FF78-Y1.1KW | 85.52 | 1.1KW | 110kg | 19400N |
| FF78-Y1.1KW | 75.02 | 1.1KW | 110kg | 19600N |
FF78減速機配1.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF78-Y1.5KW | 166.47 | 1.5KW | 113kg | 14500N |
| FF78-Y1.5KW | 142.27 | 1.5KW | 113kg | 16200N |
| FF78-Y1.5KW | 130.42 | 1.5KW | 113kg | 16900N |
| FF78-Y1.5KW | 114.45 | 1.5KW | 113kg | 17700N |
| FF78-Y1.5KW | 108.46 | 1.5KW | 113kg | 18000N |
| FF78-Y1.5KW | 94.93 | 1.5KW | 113kg | 18500N |
| FF78-Y1.5KW | 85.52 | 1.5KW | 113kg | 18800N |
| FF78-Y1.5KW | 75.02 | 1.5KW | 113kg | 19100N |
| FF78-Y1.5KW | 72.50 | 1.5KW | 113kg | 19200N |
| FF78-Y1.5KW | 66.46 | 1.5KW | 113kg | 19300N |
| FF78-Y1.5KW | 58.32 | 1.5KW | 113kg | 19500N |
| FF78-Y1.5KW | 55.27 | 1.5KW | 113kg | 19600N |
| FF78-Y1.5KW | 48.37 | 1.5KW | 113kg | 19700N |
| FF78-Y1.5KW | 43.58 | 1.5KW | 113kg | 19800N |
| FF78-Y1.5KW | 38.23 | 1.5KW | 113kg | 19900N |
| FF78-Y1.5KW | 36.58 | 1.5KW | 113kg | 19900N |
| FF78-Y1.5KW | 31.51 | 1.5KW | 113kg | 20000N |
FF78減速機配2.2KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF78-Y2.2KW | 114.45 | 2.2KW | 122kg | 14300N |
| FF78-Y2.2KW | 108.46 | 2.2KW | 122kg | 15000N |
| FF78-Y2.2KW | 94.93 | 2.2KW | 122kg | 16400N |
| FF78-Y2.2KW | 85.52 | 2.2KW | 122kg | 17100N |
| FF78-Y2.2KW | 75.02 | 2.2KW | 122kg | 17900N |
| FF78-Y2.2KW | 66.46 | 2.2KW | 122kg | 18400N |
| FF78-Y2.2KW | 58.32 | 2.2KW | 122kg | 18800N |
| FF78-Y2.2KW | 55.27 | 2.2KW | 122kg | 18900N |
| FF78-Y2.2KW | 48.37 | 2.2KW | 122kg | 19200N |
| FF78-Y2.2KW | 43.58 | 2.2KW | 122kg | 19400N |
| FF78-Y2.2KW | 36.58 | 2.2KW | 122kg | 19600N |
| FF78-Y2.2KW | 31.51 | 2.2KW | 122kg | 19800N |
| FF78-Y2.2KW | 28.75 | 2.2KW | 122kg | 19800N |
| FF78-Y2.2KW | 25.50 | 2.2KW | 122kg | 19900N |
FF78減速機配3KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF78-Y3KW | 85.52 | 3KW | 125kg | 14400N |
| FF78-Y3KW | 75.02 | 3KW | 125kg | 15900N |
| FF78-Y3KW | 66.46 | 3KW | 125kg | 16900N |
| FF78-Y3KW | 58.32 | 3KW | 125kg | 17700N |
| FF78-Y3KW | 55.27 | 3KW | 125kg | 18000N |
| FF78-Y3KW | 48.37 | 3KW | 125kg | 18500N |
| FF78-Y3KW | 43.58 | 3KW | 125kg | 18800N |
| FF78-Y3KW | 38.23 | 3KW | 125kg | 19100N |
| FF78-Y3KW | 36.58 | 3KW | 125kg | 19200N |
| FF78-Y3KW | 31.51 | 3KW | 125kg | 19500N |
| FF78-Y3KW | 28.75 | 3KW | 125kg | 19600N |
| FF78-Y3KW | 25.50 | 3KW | 125kg | 19700N |
| FF78-Y3KW | 21.43 | 3KW | 125kg | 19800N |
FF78減速機配4KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF78-Y4KW | 66.46 | 4KW | 136kg | 13900N |
| FF78-Y4KW | 58.32 | 4KW | 136kg | 15600N |
| FF78-Y4KW | 55.27 | 4KW | 136kg | 16100N |
| FF78-Y4KW | 48.37 | 4KW | 136kg | 17100N |
| FF78-Y4KW | 43.58 | 4KW | 136kg | 17700N |
| FF78-Y4KW | 38.23 | 4KW | 136kg | 18300N |
| FF78-Y4KW | 33.74 | 4KW | 136kg | 18700N |
| FF78-Y4KW | 29.91 | 4KW | 136kg | 19000N |
| FF78-Y4KW | 25.54 | 4KW | 136kg | 19300N |
| FF78-Y4KW | 31.51 | 4KW | 136kg | 18900N |
| FF78-Y4KW | 28.75 | 4KW | 136kg | 19100N |
| FF78-Y4KW | 25.50 | 4KW | 136kg | 19300N |
| FF78-Y4KW | 21.43 | 4KW | 136kg | 19600N |
| FF78-Y4KW | 19.70 | 4KW | 136kg | 19700N |
FF78減速機配5.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF78-Y5.5KW | 48.37 | 5.5KW | 150kg | 13800N |
| FF78-Y5.5KW | 43.58 | 5.5KW | 150kg | 15200N |
| FF78-Y5.5KW | 38.23 | 5.5KW | 150kg | 16500N |
| FF78-Y5.5KW | 33.74 | 5.5KW | 150kg | 17400N |
| FF78-Y5.5KW | 29.91 | 5.5KW | 150kg | 18000N |
| FF78-Y5.5KW | 25.54 | 5.5KW | 150kg | 18600N |
| FF78-Y5.5KW | 25.50 | 5.5KW | 150kg | 18600N |
| FF78-Y5.5KW | 21.43 | 5.5KW | 150kg | 19100N |
| FF78-Y5.5KW | 19.70 | 5.5KW | 150kg | 19200N |
| FF78-Y5.5KW | 17.49 | 5.5KW | 150kg | 19400N |
| FF78-Y5.5KW | 15.64 | 5.5KW | 150kg | 19600N |
| FF78-Y5.5KW | 14.06 | 5.5KW | 150kg | 19200N |
| FF78-Y5.5KW | 12.20 | 5.5KW | 150kg | 18600N |
FF78減速機配7.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF78-Y7.5KW | 33.74 | 7.5KW | 163kg | 14700N |
| FF78-Y7.5KW | 29.91 | 7.5KW | 163kg | 16000N |
| FF78-Y7.5KW | 25.54 | 7.5KW | 163kg | 17200N |
| FF78-Y7.5KW | 25.50 | 7.5KW | 163kg | 17200N |
| FF78-Y7.5KW | 21.43 | 7.5KW | 163kg | 18100N |
| FF78-Y7.5KW | 19.70 | 7.5KW | 163kg | 18500N |
| FF78-Y7.5KW | 17.49 | 7.5KW | 163kg | 18800N |
| FF78-Y7.5KW | 15.64 | 7.5KW | 163kg | 18900N |
| FF78-Y7.5KW | 14.06 | 7.5KW | 163kg | 18500N |
| FF78-Y7.5KW | 12.20 | 7.5KW | 163kg | 17900N |
| FF78-Y7.5KW | 10.93 | 7.5KW | 163kg | 17500N |
| FF78-Y7.5KW | 9.30 | 7.5KW | 163kg | 16400N |
| FF78-Y7.5KW | 8.26 | 7.5KW | 163kg | 16000N |
| FF78-Y7.5KW | 7.39 | 7.5KW | 163kg | 15600N |
| FF78-Y7.5KW | 6.64 | 7.5KW | 163kg | 15200N |
| FF78-Y7.5KW | 5.76 | 7.5KW | 163kg | 14700N |
| FF78-Y7.5KW | 5.16 | 7.5KW | 163kg | 14400N |
| FF78-Y7.5KW | 4.28 | 7.5KW | 163kg | 13700N |
FF78減速機配11KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF78-Y11KW | 19.70 | 11KW | 205kg | 16300N |
| FF78-Y11KW | 17.49 | 11KW | 205kg | 17200N |
| FF78-Y11KW | 15.64 | 11KW | 205kg | 17600N |
| FF78-Y11KW | 14.06 | 11KW | 205kg | 17300N |
| FF78-Y11KW | 12.20 | 11KW | 205kg | 16900N |
| FF78-Y11KW | 10.93 | 11KW | 205kg | 16600N |
| FF78-Y11KW | 9.30 | 11KW | 205kg | 15400N |
| FF78-Y11KW | 8.26 | 11KW | 205kg | 15100N |
| FF78-Y11KW | 7.39 | 11KW | 205kg | 14800N |
| FF78-Y11KW | 6.64 | 11KW | 205kg | 14500N |
| FF78-Y11KW | 5.74 | 11KW | 205kg | 14100N |
| FF78-Y11KW | 5.16 | 11KW | 205kg | 13800N |
| FF78-Y11KW | 4.28 | 11KW | 205kg | 13300N |
FF78減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：F78減速機
關鍵詞:GFF系列減速器配制動電機一體式_剎車電機減速機_FF系列減速器_制動電機減速機_減速器配抱閘_減速機配抱閘_FF系列減速機_FF型減速機_GFF系列減速機_配剎車減速機_配制動減速機_配抱閘減速機_抱閘電機減速機
FF系列齒輪減速馬達型號：FF28減速機,FF38減速機,FF48減速機,FF68減速機,FF78減速機,FF88減速機,FF98減速機,FF108減速機,FF128減速機,FF158減速機
FF系列電動機減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
