KF98減速電機詳細信息

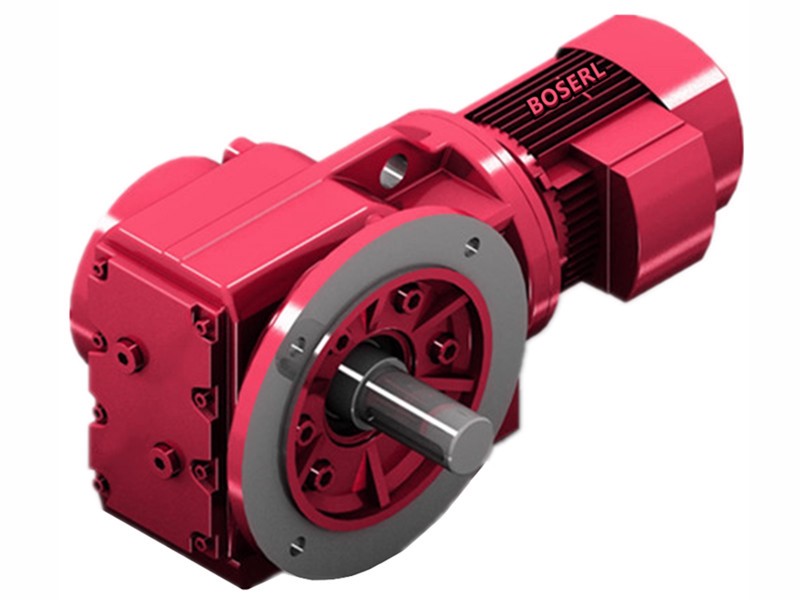

KF98減速電機
訂購熱線：13360667204
KF98減速電機選型計算：齒輪減速馬達
槳式攪拌機參數：攪動飼料1.5噸，每分鐘攪動68圈，攪拌槳輪直徑107
電機轉數1400÷68圈（輸出轉速）=減速比20.59
攪拌1.5噸=14700N
14700N×0.0535攪拌槳輪半徑=786.45×2攪拌水狀物料扭矩放大兩倍=1572.9N.m
1572.9N.m÷20.59減速比=76.39N.m電機扭矩
76.39N.m電機扭矩?fù)Q算成功率12.13KW以上
對應的KF98減速機選型參數：
型號：KF98-BEJ15KW
減速比：22.37
輸出轉數：65轉每分鐘
輸出扭矩：2180N.m
安全系數：1.95
KF98減速電機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）伺服電機減速機

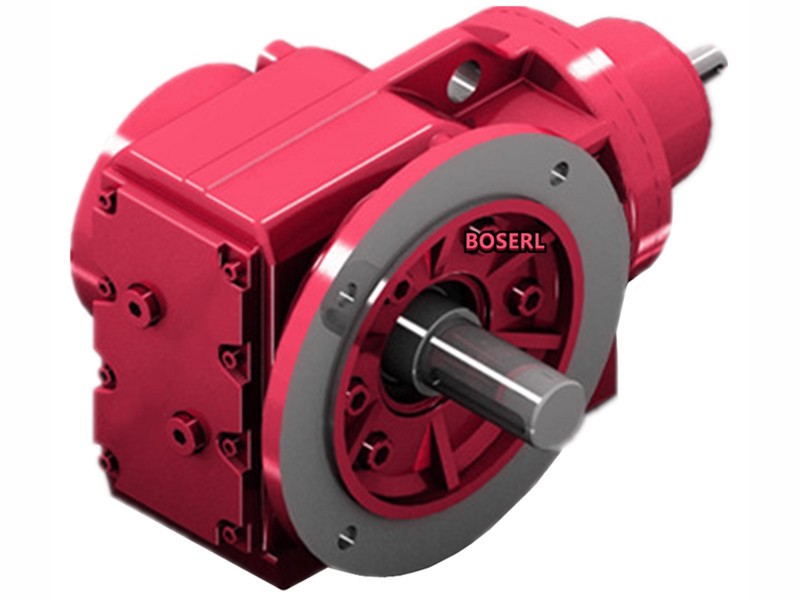

KF98斜齒輪傘齒輪減速機型號：
KF98減速電機型號參數：直角減速機
KF98減速機配1.1KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K97Y1.1KW | 1.1KW | 8rpm | 1310N.m | 3.3 |
| K97Y1.1KW | 1.1KW | 9.2rpm | 1140N.m | 3.8 |
| K97Y1.1KW | 1.1KW | 10rpm | 1040N.m | 4.1 |
KF98減速機配1.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K97Y1.5KW | 1.5KW | 8rpm | 1800N.m | 2.4 |
| K97Y1.5KW | 1.5KW | 9.2rpm | 1560N.m | 2.7 |
| K97Y1.5KW | 1.5KW | 10rpm | 1430N.m | 3 |
| K97Y1.5KW | 1.5KW | 11rpm | 1260N.m | 3.4 |
KF98減速機配2.2KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K97Y2.2KW | 2.2KW | 8rpm | 2640N.m | 1.65 |
| K97Y2.2KW | 2.2KW | 9.1rpm | 2290N.m | 1.85 |
| K97Y2.2KW | 2.2KW | 10rpm | 2100N.m | 2 |
| K97Y2.2KW | 2.2KW | 11rpm | 1850N.m | 2.3 |
| K97Y2.2KW | 2.2KW | 13rpm | 1570N.m | 2.7 |
| K97Y2.2KW | 2.2KW | 14rpm | 1450N.m | 3 |
KF98減速機配3KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K97Y3KW | 3KW | 8rpm | 3600N.m | 1.2 |
| K97Y3KW | 3KW | 9.1rpm | 3130N.m | 1.35 |
| K97Y3KW | 3KW | 10rpm | 2870N.m | 1.5 |
| K97Y3KW | 3KW | 11rpm | 2530N.m | 1.7 |
| K97Y3KW | 3KW | 13rpm | 2150N.m | 2 |
| K97Y3KW | 3KW | 14rpm | 1980N.m | 2.2 |
| K97Y3KW | 3KW | 16rpm | 1770N.m | 2.4 |
| K97Y3KW | 3KW | 18rpm | 1590N.m | 2.7 |
| K97Y3KW | 3KW | 20rpm | 1440N.m | 3 |
| K97Y3KW | 3KW | 22rpm | 1270N.m | 3.4 |
| K97Y3KW | 3KW | 25rpm | 1150N.m | 3.7 |
KF98減速機配4KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K97Y4KW | 4KW | 9.4rpm | 4080N.m | 1.05 |
| K97Y4KW | 4KW | 10rpm | 3730N.m | 1.15 |
| K97Y4KW | 4KW | 12rpm | 3300N.m | 1.3 |
| K97Y4KW | 4KW | 14rpm | 2800N.m | 1.55 |
| K97Y4KW | 4KW | 15rpm | 2580N.m | 1.65 |
| K97Y4KW | 4KW | 17rpm | 2300N.m | 1.85 |
| K97Y4KW | 4KW | 18rpm | 2070N.m | 2.1 |
| K97Y4KW | 4KW | 20rpm | 1880N.m | 2.3 |
KF98減速機配5.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K97Y5.5KW | 5.5KW | 12rpm | 4500N.m | 0.95 |
| K97Y5.5KW | 5.5KW | 14rpm | 3820N.m | 1.15 |
| K97Y5.5KW | 5.5KW | 15rpm | 3510N.m | 1.2 |
| K97Y5.5KW | 5.5KW | 17rpm | 3140N.m | 1.35 |
| K97Y5.5KW | 5.5KW | 19rpm | 2830N.m | 1.5 |
| K97Y5.5KW | 5.5KW | 20rpm | 2560N.m | 1.7 |
| K97Y5.5KW | 5.5KW | 23rpm | 2270N.m | 1.9 |
| K97Y5.5KW | 5.5KW | 26rpm | 2050N.m | 2.1 |
| K97Y5.5KW | 5.5KW | 30rpm | 1740N.m | 2.5 |
KF98減速機配7.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K97Y7.5KW | 7.5KW | 15rpm | 4790N.m | 0.9 |
| K97Y7.5KW | 7.5KW | 17rpm | 4280N.m | 1 |
| K97Y7.5KW | 7.5KW | 19rpm | 3860N.m | 1.1 |
| K97Y7.5KW | 7.5KW | 20rpm | 3490N.m | 1.25 |
| K97Y7.5KW | 7.5KW | 23rpm | 3100N.m | 1.4 |
| K97Y7.5KW | 7.5KW | 26rpm | 2800N.m | 1.55 |
| K97Y7.5KW | 7.5KW | 30rpm | 2370N.m | 1.8 |
| K97Y7.5KW | 7.5KW | 35rpm | 2070N.m | 2.1 |
| K97Y7.5KW | 7.5KW | 38rpm | 1890N.m | 2.3 |
| K97Y7.5KW | 7.5KW | 42rpm | 1690N.m | 2.5 |
KF98減速機配11KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K97Y11KW | 11KW | 35rpm | 3010N.m | 1.45 |
| K97Y11KW | 11KW | 38rpm | 2750N.m | 1.55 |
| K97Y11KW | 11KW | 43rpm | 2460N.m | 1.75 |
| K97Y11KW | 11KW | 47rpm | 2210N.m | 1.95 |
| K97Y11KW | 11KW | 52rpm | 2000N.m | 2.1 |
| K97Y11KW | 11KW | 59rpm | 1780N.m | 2.4 |
| K97Y11KW | 11KW | 65rpm | 1600N.m | 2.7 |
KF98減速機配15KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K97Y15KW | 15KW | 30rpm | 4700N.m | 0.9 |
| K97Y15KW | 15KW | 35rpm | 4110N.m | 1.05 |
| K97Y15KW | 15KW | 38rpm | 3760N.m | 1.15 |
| K97Y15KW | 15KW | 43rpm | 3360N.m | 1.3 |
| K97Y15KW | 15KW | 47rpm | 3020N.m | 1.4 |
| K97Y15KW | 15KW | 52rpm | 2740N.m | 1.55 |
| K97Y15KW | 15KW | 59rpm | 2430N.m | 1.75 |
| K97Y15KW | 15KW | 65rpm | 2190N.m | 1.95 |
| K97Y15KW | 15KW | 77rpm | 1860N.m | 2.3 |
| K97Y15KW | 15KW | 88rpm | 1620N.m | 2.6 |
KF98減速機配18.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K97Y18.5KW | 18.5KW | 35rpm | 5260N.m | 0.85 |
| K97Y18.5KW | 18.5KW | 47rpm | 3720N.m | 1.15 |
| K97Y18.5KW | 18.5KW | 52rpm | 3370N.m | 1.25 |
| K97Y18.5KW | 18.5KW | 59rpm | 2990N.m | 1.45 |
| K97Y18.5KW | 18.5KW | 65rpm | 2700N.m | 1.6 |
| K97Y18.5KW | 18.5KW | 77rpm | 2290N.m | 1.85 |
| K97Y18.5KW | 18.5KW | 88rpm | 2000N.m | 2.2 |
| K97Y18.5KW | 18.5KW | 105rpm | 1670N.m | 2.6 |
| K97Y18.5KW | 18.5KW | 122rpm | 1450N.m | 2.7 |
KF98減速機配22KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K97Y22KW | 22KW | 47rpm | 4430N.m | 0.95 |
| K97Y22KW | 22KW | 52rpm | 4010N.m | 1.05 |
| K97Y22KW | 22KW | 59rpm | 3560N.m | 1.2 |
| K97Y22KW | 22KW | 65rpm | 3210N.m | 1.35 |
| K97Y22KW | 22KW | 77rpm | 2720N.m | 1.6 |
| K97Y22KW | 22KW | 88rpm | 2380N.m | 1.8 |
| K97Y22KW | 22KW | 105rpm | 1990N.m | 2.2 |
| K97Y22KW | 22KW | 122rpm | 1720N.m | 2.2 |
| K97Y22KW | 22KW | 140rpm | 1490N.m | 1.9 |
| K97Y22KW | 22KW | 168rpm | 1250N.m | 2.1 |
KF98減速機配30KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K97Y30KW | 30KW | 60rpm | 4810N.m | 0.9 |
| K97Y30KW | 30KW | 66rpm | 4340N.m | 1 |
| K97Y30KW | 30KW | 78rpm | 3680N.m | 1.15 |
| K97Y30KW | 30KW | 89rpm | 3220N.m | 1.35 |
| K97Y30KW | 30KW | 107rpm | 2690N.m | 1.6 |
| K97Y30KW | 30KW | 123rpm | 2330N.m | 1.65 |
| K97Y30KW | 30KW | 142rpm | 2020N.m | 1.4 |
| K97Y30KW | 30KW | 169rpm | 1690N.m | 1.55 |
KF98減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：K98減速機
關鍵詞:交流減速機配電機一體式_大扭力減速機_伺服電機減速機_伺服減速機_伺服電機減速器_伺服減速器_伺服電機減速機一體機_伺服減速機一體式_大扭力減速器_GKF系列減速機_KF系列減速機_伺服電機減速機一體式_伺服電機減速機一體化_KF系列減速器
KF系列齒輪減速馬達型號：KF38減速機,KF48減速機,KF58減速機,KF68減速機,KF78減速機,KF88減速機,KF98減速機,KF108減速機,KF128減速機,KF158減速機,KF167減速機,KF187減速機
KF系列直角減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: KF98減速電機 KF97斜齒輪傘齒輪減速機 KF97減速機功率 KF97減速機基座尺寸 KF97減速機模型 KF97減速機型號參數
