K58減速電機詳細信息

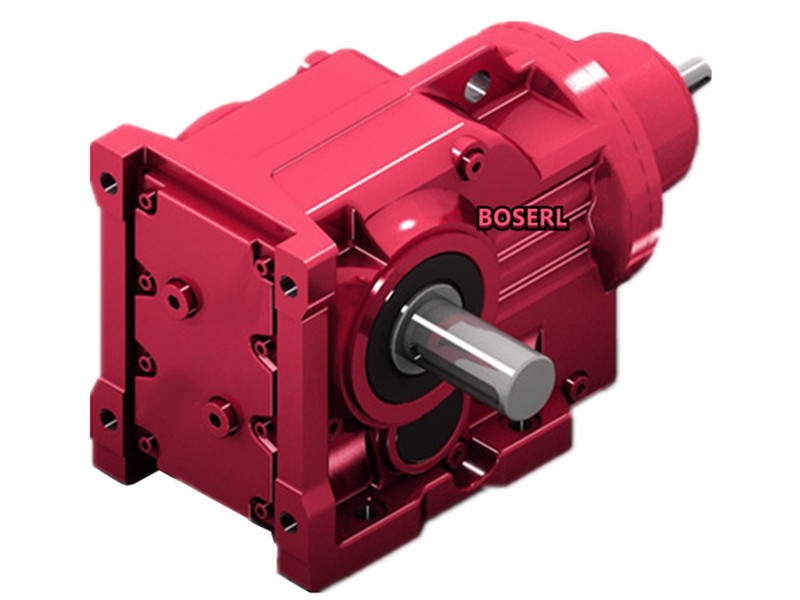

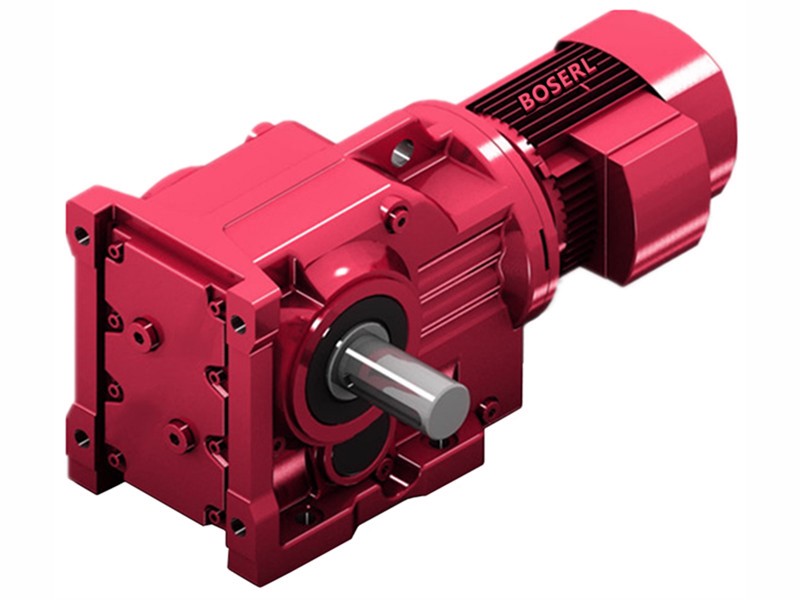

K58減速電機
訂購熱線：13360667204
K58減速電機選型計算：齒輪減速馬達
藥材攪拌器參數：攪拌藥材350kg，一分鐘攪動135圈，攪拌葉輪直徑75
電機轉數1400÷135圈（輸出轉速）=減速比10.37
攪拌350kg藥材=3430N
3430N×0.0375葉輪半徑=128.625×2攪拌水狀物料扭矩放大兩倍=257.25N.m
257.25N.m÷10.37減速比=24.81N.m電機扭矩
24.81N.m電機扭矩?fù)Q算成功率3.94KW以上
對應的K58減速機選型參數：
型號：K58-B4KW
減速比：11.26
輸出轉數：130轉每分鐘
輸出扭矩：290N.m
安全系數：1.4
K58減速電機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）K系列減速機
K58直角齒輪減速機型號：
K58減速電機型號參數：直角減速機
K58減速機配0.12KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K57Y0.12KW | 0.12KW | 9.5rpm | 120N.m | 5 |
| K57Y0.12KW | 0.12KW | 11rpm | 103N.m | 5.8 |
| K57Y0.12KW | 0.12KW | 13rpm | 90N.m | 6.7 |
| K57Y0.12KW | 0.12KW | 13rpm | 85N.m | 7 |
| K57Y0.12KW | 0.12KW | 15rpm | 75N.m | 8 |
K58減速機配0.18KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K57Y0.18KW | 0.18KW | 9.1rpm | 189N.m | 3.2 |
| K57Y0.18KW | 0.18KW | 11rpm | 161N.m | 3.7 |
| K57Y0.18KW | 0.18KW | 12rpm | 141N.m | 4.3 |
| K57Y0.18KW | 0.18KW | 13rpm | 134N.m | 4.5 |
| K57Y0.18KW | 0.18KW | 15rpm | 118N.m | 5.1 |
| K57Y0.18KW | 0.18KW | 17rpm | 100N.m | 6 |
K58減速機配0.25KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K57Y0.25KW | 0.25KW | 9rpm | 265N.m | 2.2 |
| K57Y0.25KW | 0.25KW | 10rpm | 225N.m | 2.6 |
| K57Y0.25KW | 0.25KW | 12rpm | 199N.m | 3 |
| K57Y0.25KW | 0.25KW | 13rpm | 189N.m | 3.2 |
| K57Y0.25KW | 0.25KW | 14rpm | 166N.m | 3.6 |
| K57Y0.25KW | 0.25KW | 17rpm | 141N.m | 4.3 |
K58減速機配0.37KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K57Y0.37KW | 0.37KW | 9.5rpm | 370N.m | 1.6 |
| K57Y0.37KW | 0.37KW | 11rpm | 315N.m | 1.9 |
| K57Y0.37KW | 0.37KW | 13rpm | 275N.m | 2.2 |
| K57Y0.37KW | 0.37KW | 13rpm | 260N.m | 2.3 |
| K57Y0.37KW | 0.37KW | 15rpm | 230N.m | 2.6 |
| K57Y0.37KW | 0.37KW | 18rpm | 196N.m | 3.1 |
| K57Y0.37KW | 0.37KW | 20rpm | 177N.m | 3.4 |
K58減速機配0.55KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K57Y0.55KW | 0.55KW | 11rpm | 470N.m | 1.25 |
| K57Y0.55KW | 0.55KW | 13rpm | 410N.m | 1.45 |
| K57Y0.55KW | 0.55KW | 13rpm | 390N.m | 1.55 |
| K57Y0.55KW | 0.55KW | 15rpm | 340N.m | 1.75 |
| K57Y0.55KW | 0.55KW | 18rpm | 290N.m | 2.1 |
| K57Y0.55KW | 0.55KW | 20rpm | 260N.m | 2.3 |
| K57Y0.55KW | 0.55KW | 23rpm | 230N.m | 2.6 |
| K57Y0.55KW | 0.55KW | 24rpm | 215N.m | 2.8 |
K58減速機配0.75KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K57Y0.75KW | 0.75KW | 11rpm | 625N.m | 0.95 |
| K57Y0.75KW | 0.75KW | 13rpm | 550N.m | 1.1 |
| K57Y0.75KW | 0.75KW | 14rpm | 520N.m | 1.15 |
| K57Y0.75KW | 0.75KW | 16rpm | 455N.m | 1.3 |
| K57Y0.75KW | 0.75KW | 18rpm | 385N.m | 1.55 |
| K57Y0.75KW | 0.75KW | 20rpm | 350N.m | 1.7 |
| K57Y0.75KW | 0.75KW | 23rpm | 305N.m | 1.95 |
| K57Y0.75KW | 0.75KW | 25rpm | 290N.m | 2.1 |
| K57Y0.75KW | 0.75KW | 29rpm | 245N.m | 2.4 |
| K57Y0.75KW | 0.75KW | 32rpm | 225N.m | 2.7 |
K58減速機配1.1KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K57Y1.1KW | 1.1KW | 16rpm | 670N.m | 0.9 |
| K57Y1.1KW | 1.1KW | 18rpm | 570N.m | 1.05 |
| K57Y1.1KW | 1.1KW | 20rpm | 610N.m | 1.15 |
| K57Y1.1KW | 1.1KW | 23rpm | 450N.m | 1.3 |
| K57Y1.1KW | 1.1KW | 25rpm | 425N.m | 1.4 |
| K57Y1.1KW | 1.1KW | 29rpm | 360N.m | 1.65 |
| K57Y1.1KW | 1.1KW | 32rpm | 330N.m | 1.8 |
| K57Y1.1KW | 1.1KW | 37rpm | 285N.m | 2.1 |
| K57Y1.1KW | 1.1KW | 39rpm | 265N.m | 2.3 |
| K57Y1.1KW | 1.1KW | 47rpm | 225N.m | 2.7 |
| K57Y1.1KW | 1.1KW | 52rpm | 200N.m | 3 |
| K57Y1.1KW | 1.1KW | 59rpm | 179N.m | 3.4 |
| K57Y1.1KW | 1.1KW | 62rpm | 169N.m | 3.6 |
| K57Y1.1KW | 1.1KW | 73rpm | 144N.m | 4 |
| K57Y1.1KW | 1.1KW | 80rpm | 131N.m | 4.2 |
| K57Y1.1KW | 1.1KW | 93rpm | 113N.m | 4.7 |
| K57Y1.1KW | 1.1KW | 106rpm | 99N.m | 5.2 |
| K57Y1.1KW | 1.1KW | 118rpm | 89N.m | 4.7 |
| K57Y1.1KW | 1.1KW | 125rpm | 84N.m | 5 |
| K57Y1.1KW | 1.1KW | 147rpm | 71N.m | 5.7 |
| K57Y1.1KW | 1.1KW | 162rpm | 65N.m | 6 |
| K57Y1.1KW | 1.1KW | 187rpm | 56N.m | 6.5 |
| K57Y1.1KW | 1.1KW | 215rpm | 49N.m | 7.1 |
| K57Y1.1KW | 1.1KW | 3rpm | 35N.m | 8.6 |
K58減速機配1.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K57Y1.5KW | 1.5KW | 23rpm | 620N.m | 0.95 |
| K57Y1.5KW | 1.5KW | 24rpm | 585N.m | 1 |
| K57Y1.5KW | 1.5KW | 29rpm | 500N.m | 1.2 |
| K57Y1.5KW | 1.5KW | 32rpm | 450N.m | 1.3 |
| K57Y1.5KW | 1.5KW | 36rpm | 390N.m | 1.5 |
| K57Y1.5KW | 1.5KW | 39rpm | 365N.m | 1.65 |
| K57Y1.5KW | 1.5KW | 46rpm | 305N.m | 1.95 |
| K57Y1.5KW | 1.5KW | 51rpm | 275N.m | 2.2 |
| K57Y1.5KW | 1.5KW | 58rpm | 245N.m | 2.4 |
| K57Y1.5KW | 1.5KW | 62rpm | 230N.m | 2.6 |
| K57Y1.5KW | 1.5KW | 72rpm | 198N.m | 2.9 |
K58減速機配2.2KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K57Y2.2KW | 2.2KW | 32rpm | 665N.m | 0.9 |
| K57Y2.2KW | 2.2KW | 36rpm | 575N.m | 1.05 |
| K57Y2.2KW | 2.2KW | 39rpm | 535N.m | 1.1 |
| K57Y2.2KW | 2.2KW | 46rpm | 450N.m | 1.3 |
| K57Y2.2KW | 2.2KW | 51rpm | 410N.m | 1.45 |
| K57Y2.2KW | 2.2KW | 58rpm | 360N.m | 1.65 |
| K57Y2.2KW | 2.2KW | 62rpm | 340N.m | 1.75 |
| K57Y2.2KW | 2.2KW | 72rpm | 290N.m | 2 |
| K57Y2.2KW | 2.2KW | 80rpm | 260N.m | 2.1 |
| K57Y2.2KW | 2.2KW | 92rpm | 225N.m | 2.3 |
| K57Y2.2KW | 2.2KW | 106rpm | 199N.m | 2.6 |
| K57Y2.2KW | 2.2KW | 117rpm | 179N.m | 2.3 |
| K57Y2.2KW | 2.2KW | 124rpm | 169N.m | 2.5 |
K58減速機配3KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K57Y3KW | 3KW | 46rpm | 615N.m | 0.95 |
| K57Y3KW | 3KW | 51rpm | 555N.m | 1.05 |
| K57Y3KW | 3KW | 58rpm | 490N.m | 1.2 |
| K57Y3KW | 3KW | 62rpm | 460N.m | 1.3 |
| K57Y3KW | 3KW | 72rpm | 395N.m | 1.45 |
| K57Y3KW | 3KW | 80rpm | 355N.m | 1.55 |
| K57Y3KW | 3KW | 92rpm | 310N.m | 1.7 |
| K57Y3KW | 3KW | 106rpm | 270N.m | 1.9 |
| K57Y3KW | 3KW | 117rpm | 240N.m | 1.7 |
| K57Y3KW | 3KW | 124rpm | 230N.m | 1.8 |
| K57Y3KW | 3KW | 146rpm | 196N.m | 2.1 |
| K57Y3KW | 3KW | 161rpm | 178N.m | 2.2 |
| K57Y3KW | 3KW | 186rpm | 154N.m | 2.4 |
| K57Y3KW | 3KW | 213rpm | 134N.m | 2.6 |
| K57Y3KW | 3KW | 298rpm | 96N.m | 3.1 |
K58減速機配4KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K57Y4KW | 4KW | 60rpm | 640N.m | 0.95 |
| K57Y4KW | 4KW | 63rpm | 605N.m | 1 |
| K57Y4KW | 4KW | 74rpm | 515N.m | 1.1 |
| K57Y4KW | 4KW | 82rpm | 470N.m | 1.2 |
| K57Y4KW | 4KW | 94rpm | 405N.m | 1.3 |
| K57Y4KW | 4KW | 108rpm | 355N.m | 1.45 |
| K57Y4KW | 4KW | 120rpm | 315N.m | 1.3 |
| K57Y4KW | 4KW | 127rpm | 300N.m | 1.4 |
| K57Y4KW | 4KW | 150rpm | 255N.m | 1.6 |
| K57Y4KW | 4KW | 165rpm | 230N.m | 1.7 |
| K57Y4KW | 4KW | 190rpm | 200N.m | 1.8 |
| K57Y4KW | 4KW | 219rpm | 175N.m | 1.95 |
| K57Y4KW | 4KW | 306rpm | 125N.m | 2.4 |
K58減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：K58減速機
關鍵詞:GK型減速機配電機一體式_螺旋錐齒輪減速器_K系列減速機_雙出軸減速機_90度減速機_螺旋錐齒輪減速機_GK系列減速機_K系列減速器_雙出軸減速器_90度減速器
K系列齒輪減速馬達型號：K38減速機,K48減速機,K58減速機,K68減速機,K78減速機,K88減速機,K98減速機,K108減速機,K128減速機,K158減速機,K168減速機,K188減速機
K系列直角減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
