K78R38減速機詳細信息
K78R38減速機
K78R38減速機電機功率：K78R38Y0.12KW減速機,K78R38Y0.18KW減速機,K78R38Y0.25KW減速機,K78R38Y0.37KW減速機,K78R38Y0.55KW減速機,K78R38Y0.75KW減速機（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。
K78R38減速機配0.12KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K78R38-Y0.12KW | 2717 | 0.12KW | 0.51r/min | 1840N.m | 71kg | 11500N | 0.85 |
| K78R38-Y0.12KW | 2370 | 0.12KW | 0.58r/min | 1530N.m | 71kg | 15500N | 1.00 |
| K78R38-Y0.12KW | 2050 | 0.12KW | 0.67r/min | 1430N.m | 71kg | 16100N | 1.10 |
| K78R38-Y0.12KW | 1772 | 0.12KW | 0.78r/min | 1220N.m | 71kg | 17300N | 1.25 |
| K78R38-Y0.12KW | 1514 | 0.12KW | 0.91r/min | 1040N.m | 71kg | 18100N | 1.50 |
| K78R38-Y0.12KW | 1388 | 0.12KW | 0.99r/min | 960N.m | 71kg | 18500N | 1.60 |
| K78R38-Y0.12KW | 1218 | 0.12KW | 1.10r/min | 840N.m | 71kg | 18900N | 1.85 |
| K78R38-Y0.12KW | 1053 | 0.12KW | 1.30r/min | 735N.m | 71kg | 19200N | 2.10 |
| K78R38-Y0.12KW | 924 | 0.12KW | 1.50r/min | 645N.m | 71kg | 19400N | 2.40 |
| K78R38-Y0.12KW | 815 | 0.12KW | 1.70r/min | 570N.m | 71kg | 19600N | 2.70 |
| K78R38-Y0.12KW | 709 | 0.12KW | 2.00r/min | 445N.m | 71kg | 19800N | 3.50 |
| K78R38-Y0.12KW | 622 | 0.12KW | 2.20r/min | 390N.m | 71kg | 19900N | 3.90 |
K78R38減速機配0.18KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K78R38-Y0.18KW | 1514 | 0.18KW | 0.87r/min | 1710N.m | 71.5kg | 14100N | 0.90 |
| K78R38-Y0.18KW | 1388 | 0.18KW | 0.95r/min | 1570N.m | 71.5kg | 15200N | 1.00 |
| K78R38-Y0.18KW | 1218 | 0.18KW | 1.10r/min | 1380N.m | 71.5kg | 16500N | 1.10 |
| K78R38-Y0.18KW | 1053 | 0.18KW | 1.20r/min | 1200N.m | 71.5kg | 17400N | 1.30 |
| K78R38-Y0.18KW | 924 | 0.18KW | 1.40r/min | 1050N.m | 71.5kg | 18100N | 1.45 |
| K78R38-Y0.18KW | 815 | 0.18KW | 1.60r/min | 930N.m | 71.5kg | 18600N | 1.65 |
| K78R38-Y0.18KW | 709 | 0.18KW | 1.90r/min | 760N.m | 71.5kg | 19100N | 2.00 |
| K78R38-Y0.18KW | 622 | 0.18KW | 2.10r/min | 665N.m | 71.5kg | 19300N | 2.30 |
| K78R38-Y0.18KW | 552 | 0.18KW | 2.40r/min | 600N.m | 71.5kg | 19500N | 2.60 |
| K78R38-Y0.18KW | 485 | 0.18KW | 2.70r/min | 525N.m | 71.5kg | 19600N | 2.90 |
| K78R38-Y0.18KW | 428 | 0.18KW | 3.10r/min | 465N.m | 71.5kg | 19800N | 3.30 |
| K78R38-Y0.18KW | 367 | 0.18KW | 3.60r/min | 410N.m | 71.5kg | 19800N | 3.80 |
K78R38減速機配0.25KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K78R38-Y0.25KW | 1053 | 0.25KW | 1.20r/min | 1720N.m | 75.5kg | 14000N | 0.90 |
| K78R38-Y0.25KW | 924 | 0.25KW | 1.40r/min | 1510N.m | 75.5kg | 15600N | 1.00 |
| K78R38-Y0.25KW | 815 | 0.25KW | 1.60r/min | 1330N.m | 75.5kg | 16700N | 1.15 |
| K78R38-Y0.25KW | 709 | 0.25KW | 1.80r/min | 1110N.m | 75.5kg | 17800N | 1.40 |
| K78R38-Y0.25KW | 622 | 0.25KW | 2.10r/min | 970N.m | 75.5kg | 18400N | 1.60 |
| K78R38-Y0.25KW | 552 | 0.25KW | 2.40r/min | 870N.m | 75.5kg | 18700N | 1.75 |
| K78R38-Y0.25KW | 485 | 0.25KW | 2.70r/min | 765N.m | 75.5kg | 19100N | 2.00 |
| K78R38-Y0.25KW | 428 | 0.25KW | 3.00r/min | 675N.m | 75.5kg | 19300N | 2.30 |
| K78R38-Y0.25KW | 367 | 0.25KW | 3.50r/min | 590N.m | 75.5kg | 19500N | 2.60 |
| K78R38-Y0.25KW | 328 | 0.25KW | 4.00r/min | 525N.m | 75.5kg | 19600N | 2.90 |
| K78R38-Y0.25KW | 290 | 0.25KW | 4.50r/min | 465N.m | 75.5kg | 19700N | 3.30 |
| K78R38-Y0.25KW | 252 | 0.25KW | 5.20r/min | 400N.m | 75.5kg | 19900N | 3.80 |
| K78R38-Y0.25KW | 221 | 0.25KW | 5.90r/min | 350N.m | 75.5kg | 19900N | 4.40 |
| K78R38-Y0.25KW | 195 | 0.25KW | 6.70r/min | 310N.m | 75.5kg | 20000N | 5.00 |
| K78R38-Y0.25KW | 175 | 0.25KW | 7.40r/min | 270N.m | 75.5kg | 20000N | 5.60 |
K78R38減速機配0.37KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K78R38-Y0.37KW | 815 | 0.37KW | 1.70r/min | 1880N.m | 76kg | 7450N | 0.80 |
| K78R38-Y0.37KW | 709 | 0.37KW | 2.00r/min | 1590N.m | 76kg | 15100N | 0.95 |
| K78R38-Y0.37KW | 622 | 0.37KW | 2.20r/min | 1390N.m | 76kg | 16400N | 1.10 |
| K78R38-Y0.37KW | 552 | 0.37KW | 2.50r/min | 1250N.m | 76kg | 17200N | 1.25 |
| K78R38-Y0.37KW | 485 | 0.37KW | 2.80r/min | 1090N.m | 76kg | 17900N | 1.40 |
| K78R38-Y0.37KW | 428 | 0.37KW | 3.20r/min | 960N.m | 76kg | 18400N | 1.60 |
| K78R38-Y0.37KW | 367 | 0.37KW | 3.80r/min | 840N.m | 76kg | 18900N | 1.85 |
| K78R38-Y0.37KW | 328 | 0.37KW | 4.20r/min | 745N.m | 76kg | 19100N | 2.10 |
| K78R38-Y0.37KW | 290 | 0.37KW | 4.80r/min | 665N.m | 76kg | 19400N | 2.30 |
| K78R38-Y0.37KW | 252 | 0.37KW | 5.50r/min | 570N.m | 76kg | 19600N | 2.70 |
| K78R38-Y0.37KW | 221 | 0.37KW | 6.20r/min | 500N.m | 76kg | 19700N | 3.10 |
| K78R38-Y0.37KW | 195 | 0.37KW | 7.10r/min | 440N.m | 76kg | 19800N | 3.50 |
| K78R38-Y0.37KW | 175 | 0.37KW | 7.90r/min | 390N.m | 76kg | 19900N | 4.00 |
| K78R38-Y0.37KW | 154 | 0.37KW | 9.00r/min | 345N.m | 76kg | 19900N | 4.50 |
K78R38減速機配0.55KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K78R38-Y0.55KW | 485 | 0.55KW | 2.80r/min | 1660N.m | 80.5kg | 14600N | 0.95 |
| K78R38-Y0.55KW | 428 | 0.55KW | 3.20r/min | 1460N.m | 80.5kg | 16000N | 1.05 |
| K78R38-Y0.55KW | 367 | 0.55KW | 3.80r/min | 1260N.m | 80.5kg | 17100N | 1.20 |
| K78R38-Y0.55KW | 328 | 0.55KW | 4.20r/min | 1120N.m | 80.5kg | 17800N | 1.35 |
| K78R38-Y0.55KW | 290 | 0.55KW | 4.80r/min | 1000N.m | 80.5kg | 18300N | 1.55 |
| K78R38-Y0.55KW | 252 | 0.55KW | 5.50r/min | 860N.m | 80.5kg | 18800N | 1.80 |
| K78R38-Y0.55KW | 221 | 0.55KW | 6.20r/min | 755N.m | 80.5kg | 19100N | 2.00 |
| K78R38-Y0.55KW | 195 | 0.55KW | 7.10r/min | 665N.m | 80.5kg | 19300N | 2.30 |
| K78R38-Y0.55KW | 175 | 0.55KW | 7.90r/min | 595N.m | 80.5kg | 19500N | 2.60 |
| K78R38-Y0.55KW | 154 | 0.55KW | 9.00r/min | 525N.m | 80.5kg | 19600N | 3.00 |
K78R38減速機配0.75KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K78R38-Y0.75KW | 367 | 0.75KW | 3.90r/min | 1670N.m | 81.5kg | 14400N | 0.95 |
| K78R38-Y0.75KW | 328 | 0.75KW | 4.40r/min | 1490N.m | 81.5kg | 15800N | 1.05 |
| K78R38-Y0.75KW | 290 | 0.75KW | 5.00r/min | 1320N.m | 81.5kg | 16800N | 1.15 |
| K78R38-Y0.75KW | 252 | 0.75KW | 5.70r/min | 1140N.m | 81.5kg | 17700N | 1.35 |
| K78R38-Y0.75KW | 221 | 0.75KW | 6.50r/min | 1000N.m | 81.5kg | 18300N | 1.55 |
K78R38減速器減速比：154比齒輪減速馬達,175比減速器,195比減速器,221比減速器,252比減速器,290比減速器,328比減速器,367比減速器,428比減速器,485比減速器,552比減速器,622比減速器,709比減速器,815比減速器,924比減速器,1053比減速器,1218比減速器,1388比減速器,1514比減速器,1772比減速器,2050比減速器,2370比減速器,2717比減速器。
K78R38減速機電機安裝尺寸：輸出軸+鍵Φ53.5（可定做），高288*寬306（帶輸出軸）*長471
K78R38減速電機輸出轉數：0.51轉減速電機,0.58轉減速電機,0.67轉減速電機,0.78轉減速電機,0.87轉減速電機,0.91轉減速電機,0.95轉減速電機,0.99轉減速電機,1.1轉減速電機,1.2轉減速電機,1.3轉減速電機,1.4轉減速電機,1.5轉減速電機,1.6轉減速電機,1.7轉減速電機,1.8轉減速電機,1.9轉減速電機,2轉減速電機,2.1轉直角減速機,2.2轉減速電機,2.4轉減速電機,2.5轉減速電機,2.7轉減速電機,2.8轉減速電機,3轉減速電機,3.1轉減速電機,3.2轉減速電機,3.5轉減速電機,3.6轉減速電機,3.8轉減速電機,4轉減速電機,4.2轉減速電機,4.5轉減速電機,4.8轉減速電機,5.2轉減速電機,5.5轉減速電機,5.9轉減速電機,6.2轉減速電機,6.7轉減速電機,7.1轉減速電機,7.4轉減速電機,7.9轉減速電機,9轉減速電機。
K78R38減速箱電機輸出扭矩：270N.m減速箱,310N.m減速箱,345N.m減速箱,350N.m減速箱,390N.m減速箱,400N.m減速箱,410N.m減速箱,440N.m減速箱,445N.m減速箱,465N.m減速箱,500N.m減速箱,525N.m減速箱,570N.m減速箱,590N.m減速箱,595N.m減速箱,600N.m減速箱,645N.m減速箱,665N.m減速箱,675N.m減速箱,735N.m減速箱,745N.m減速箱,755N.m減速箱,760N.m減速箱,765N.m減速箱,840N.m減速箱,860N.m減速箱,870N.m減速箱,930N.m減速箱,960N.m減速箱,970N.m減速箱,1000N.m減速箱,1040N.m減速箱,1050N.m減速箱,1090N.m減速箱,1110N.m減速箱,1120N.m減速箱,1200N.m減速箱,1220N.m減速箱,1250N.m減速箱,1260N.m減速箱,1330N.m減速箱,1380N.m減速箱,1390N.m減速箱,1430N.m減速箱,1460N.m減速箱,1510N.m減速箱,1530N.m減速箱,1570N.m減速箱,1590N.m減速箱,1660N.m減速箱,1710N.m減速箱,1720N.m減速箱,1840N.m減速箱,1880N.m減速箱。

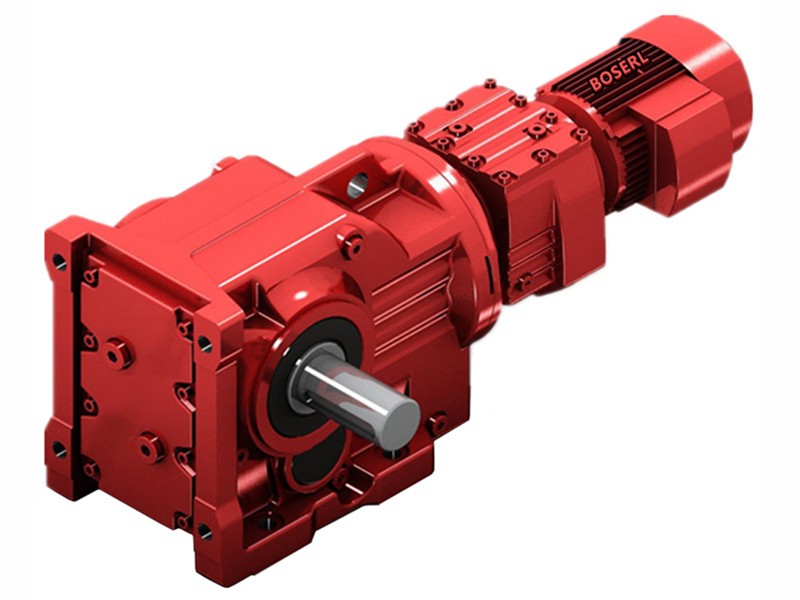

K78R38減速機電機各種輸出實物圖：
K78R38減速馬達型號：
KHZ77R37DM63L4,KHZ77R37DM63M4,KHZ77R37DM63MS4,KHZ77R37DM63S4,KHZ77R37DM71D4,KHZ77R37DM71M4,KHZ77R37DM71MS4,KHZ77R37DM71S4,KHZ77R37DM80K4,KHZ77R37DM80M4,KHZ77R37DM80MK4,KHZ77R37DM80N4,KHZ77R37DM80S4,KHZ77R37DM90L4,KHZ77R37DM90M4,KHZ77R37DM90S4,KHZ77R37DR63L4,KHZ77R37DR63M4,KHZ77R37DR63MS4,KHZ77R37DR63S4,KHZ77R37DR71D4,KHZ77R37DR71M4,KHZ77R37DR71MS4,KHZ77R37DR71S4,KHZ77R37DR80K4,KHZ77R37DR80M4,KHZ77R37DR80MK4,KHZ77R37DR80N4,KHZ77R37DR80S4,KHZ77R37DR90L4,KHZ77R37DR90M4,KHZ77R37DR90S4,KHZ77R37DRE63L4,KHZ77R37DRE63M4,KHZ77R37DRE63MS4,KHZ77R37DRE63S4,KHZ77R37DRE71D4,KHZ77R37DRE71M4,KHZ77R37DRE71MS4,KHZ77R37DRE71S4,KHZ77R37DRE80K4,KHZ77R37DRE80M4,KHZ77R37DRE80MK4,KHZ77R37DRE80N4,KHZ77R37DRE80S4,KHZ77R37DRE90L4,KHZ77R37DRE90M4,KHZ77R37DRE90S4,KHZ77R37DRN63L4,KHZ77R37DRN63M4,KHZ77R37DRN63MS4,KHZ77R37DRN63S4,KHZ77R37DRN71D4,KHZ77R37DRN71M4,KHZ77R37DRN71MS4,KHZ77R37DRN71S4,KHZ77R37DRN80K4,KHZ77R37DRN80M4,KHZ77R37DRN80MK4,KHZ77R37DRN80N4,KHZ77R37DRN80S4,KHZ77R37DRN90L4,KHZ77R37DRN90M4,KHZ77R37DRN90S4,KHZ77R37DRS63L4,KHZ77R37DRS63M4,KHZ77R37DRS63MS4,KHZ77R37DRS63S4,KHZ77R37DRS71D4,KHZ77R37DRS71M4,KHZ77R37DRS71MS4,KHZ77R37DRS71S4,KHZ77R37DRS80K4,KHZ77R37DRS80M4,KHZ77R37DRS80MK4,KHZ77R37DRS80N4,KHZ77R37DRS80S4,KHZ77R37DRS90L4,KHZ77R37DRS90M4,KHZ77R37DRS90S4,KHZ77R37DT63L4,KHZ77R37DT63M4,KHZ77R37DT63MS4,KHZ77R37DT63S4,KHZ77R37DT71D4,KHZ77R37DT71M4,KHZ77R37DT71MS4,KHZ77R37DT71S4,KHZ77R37DT80K4,KHZ77R37DT80M4,KHZ77R37DT80MK4,KHZ77R37DT80N4,KHZ77R37DT80S4,KHZ77R37DT90L4,KHZ77R37DT90M4,KHZ77R37DT90S4,KHZ77R37DV63L4,KHZ77R37DV63M4,KHZ77R37DV63MS4,KHZ77R37DV63S4,KHZ77R37DV71D4,KHZ77R37DV71M4,KHZ77R37DV71MS4,KHZ77R37DV71S4,KHZ77R37DV80K4,KHZ77R37DV80M4,KHZ77R37DV80MK4,KHZ77R37DV80N4,KHZ77R37DV80S4,KHZ77R37DV90L4,KHZ77R37DV90M4,KHZ77R37DV90S4,KHZ77R37DVE63L4,KHZ77R37DVE63M4,KHZ77R37DVE63MS4,KHZ77R37DVE63S4,KHZ77R37DVE71D4,KHZ77R37DVE71M4,KHZ77R37DVE71MS4,KHZ77R37DVE71S4,KHZ77R37DVE80K4,KHZ77R37DVE80M4,KHZ77R37DVE80MK4,KHZ77R37DVE80N4,KHZ77R37DVE80S4,KHZ77R37DVE90L4,KHZ77R37DVE90M4,KHZ77R37DVE90S4,KHZ77RF37-Y0.12KW,KHZ77RF37-Y0.12KW,KHZ77RF37-Y0.12KW,KHZ77RF37-Y0.12KW,KHZ77RF37-Y0.18KW,KHZ77RF37-Y0.18KW,KHZ77RF37-Y0.18KW,KHZ77RF37-Y0.18KW,KHZ77RF37-Y0.25KW,KHZ77RF37-Y0.25KW,KHZ77RF37-Y0.25KW,KHZ77RF37-Y0.25KW,KHZ77RF37-Y0.37KW,KHZ77RF37-Y0.37KW,KHZ77RF37-Y0.37KW,KHZ77RF37-Y0.37KW,KHZ77RF37-Y0.55KW,KHZ77RF37-Y0.55KW,KHZ77RF37-Y0.55KW,KHZ77RF37-Y0.55KW,KHZ77RF37-Y0.75KW,KHZ77RF37-Y0.75KW,KHZ77RF37-Y0.75KW,KHZ77RF37-Y0.75KW,KHZ77RF37-Y1.1KW,KHZ77RF37-Y1.1KW,KHZ77RF37-Y1.1KW,KHZ77RF37-Y1.1KW,KHZ77RF37-Y1.5KW,KHZ77RF37-Y1.5KW,KHZ77RF37-Y1.5KW,KHZ77RF37-Y1.5KW,KHZ77RF37-Y63M4,KHZ77RF37-Y71M4,KHZ77RF37-Y80M4,KHZ77RF37-Y90M4,KHZ77RF37-YEJ63M4,KHZ77RF37-YEJ71M4,KHZ77RF37-YEJ80M4,KHZ77RF37-YEJ90S4,KHZ77RF37-YVP63M4,KHZ77RF37-YVP71M4,KHZ77RF37-YVP80M4,KHZ77RF37-YVP90S4,KHZ77RF37-YVPEJ63M4,KHZ77RF37-YVPEJ71M4,KHZ77RF37-YVPEJ80M4,KHZ77RF37-YVPEJ90S4,KVZ77R37DM63L4,KVZ77R37DM63M4,KVZ77R37DM63MS4,KVZ77R37DM63S4,KVZ77R37DM71D4,KVZ77R37DM71M4,KVZ77R37DM71MS4,KVZ77R37DM71S4,KVZ77R37DM80K4,KVZ77R37DM80M4,KVZ77R37DM80MK4,KVZ77R37DM80N4,KVZ77R37DM80S4,KVZ77R37DM90L4,KVZ77R37DM90M4,KVZ77R37DM90S4,KVZ77R37DR63L4,KVZ77R37DR63M4,KVZ77R37DR63MS4,KVZ77R37DR63S4,KVZ77R37DR71D4,KVZ77R37DR71M4,KVZ77R37DR71MS4,KVZ77R37DR71S4,KVZ77R37DR80K4,KVZ77R37DR80M4,KVZ77R37DR80MK4,KVZ77R37DR80N4,KVZ77R37DR80S4,KVZ77R37DR90L4,KVZ77R37DR90M4,KVZ77R37DR90S4,KVZ77R37DRE63L4,KVZ77R37DRE63M4,KVZ77R37DRE63MS4,KVZ77R37DRE63S4,KVZ77R37DRE71D4,KVZ77R37DRE71M4,KVZ77R37DRE71MS4,KVZ77R37DRE71S4,KVZ77R37DRE80K4,KVZ77R37DRE80M4,KVZ77R37DRE80MK4,KVZ77R37DRE80N4,KVZ77R37DRE80S4,KVZ77R37DRE90L4,KVZ77R37DRE90M4,KVZ77R37DRE90S4,KVZ77R37DRN63L4,KVZ77R37DRN63M4,KVZ77R37DRN63MS4,KVZ77R37DRN63S4,KVZ77R37DRN71D4,KVZ77R37DRN71M4,KVZ77R37DRN71MS4,KVZ77R37DRN71S4,KVZ77R37DRN80K4,KVZ77R37DRN80M4,KVZ77R37DRN80MK4,KVZ77R37DRN80N4,KVZ77R37DRN80S4,KVZ77R37DRN90L4,KVZ77R37DRN90M4,KVZ77R37DRN90S4,KVZ77R37DRS63L4,KVZ77R37DRS63M4,KVZ77R37DRS63MS4,KVZ77R37DRS63S4,KVZ77R37DRS71D4,KVZ77R37DRS71M4,KVZ77R37DRS71MS4,KVZ77R37DRS71S4,KVZ77R37DRS80K4,KVZ77R37DRS80M4,KVZ77R37DRS80MK4,KVZ77R37DRS80N4,KVZ77R37DRS80S4,KVZ77R37DRS90L4,KVZ77R37DRS90M4,KVZ77R37DRS90S4,KVZ77R37DT63L4,KVZ77R37DT63M4,KVZ77R37DT63MS4,KVZ77R37DT63S4,KVZ77R37DT71D4,KVZ77R37DT71M4,KVZ77R37DT71MS4,KVZ77R37DT71S4,KVZ77R37DT80K4,KVZ77R37DT80M4,KVZ77R37DT80MK4,KVZ77R37DT80N4,KVZ77R37DT80S4,KVZ77R37DT90L4,KVZ77R37DT90M4,KVZ77R37DT90S4,KVZ77R37DV63L4,KVZ77R37DV63M4,KVZ77R37DV63MS4,KVZ77R37DV63S4,KVZ77R37DV71D4,KVZ77R37DV71M4,KVZ77R37DV71MS4,KVZ77R37DV71S4,KVZ77R37DV80K4,KVZ77R37DV80M4,KVZ77R37DV80MK4,KVZ77R37DV80N4,KVZ77R37DV80S4,KVZ77R37DV90L4,KVZ77R37DV90M4,KVZ77R37DV90S4,KVZ77R37DVE63L4,KVZ77R37DVE63M4,KVZ77R37DVE63MS4,KVZ77R37DVE63S4,KVZ77R37DVE71D4,KVZ77R37DVE71M4,KVZ77R37DVE71MS4,KVZ77R37DVE71S4,KVZ77R37DVE80K4,KVZ77R37DVE80M4,KVZ77R37DVE80MK4,KVZ77R37DVE80N4,KVZ77R37DVE80S4,KVZ77R37DVE90L4,KVZ77R37DVE90M4,KVZ77R37DVE90S4,KVZ77RF37-Y0.12KW,KVZ77RF37-Y0.12KW,KVZ77RF37-Y0.12KW,KVZ77RF37-Y0.12KW,KVZ77RF37-Y0.18KW,KVZ77RF37-Y0.18KW,KVZ77RF37-Y0.18KW,KVZ77RF37-Y0.18KW,KVZ77RF37-Y0.25KW,KVZ77RF37-Y0.25KW,KVZ77RF37-Y0.25KW,KVZ77RF37-Y0.25KW,KVZ77RF37-Y0.37KW,KVZ77RF37-Y0.37KW,KVZ77RF37-Y0.37KW,KVZ77RF37-Y0.37KW,KVZ77RF37-Y0.55KW,KVZ77RF37-Y0.55KW,KVZ77RF37-Y0.55KW,KVZ77RF37-Y0.55KW,KVZ77RF37-Y0.75KW,KVZ77RF37-Y0.75KW,KVZ77RF37-Y0.75KW,KVZ77RF37-Y0.75KW,KVZ77RF37-Y1.1KW,KVZ77RF37-Y1.1KW,KVZ77RF37-Y1.1KW,KVZ77RF37-Y1.1KW,KVZ77RF37-Y1.5KW,KVZ77RF37-Y1.5KW,KVZ77RF37-Y1.5KW,KVZ77RF37-Y1.5KW,KVZ77RF37-Y63M4,KVZ77RF37-Y71M4,KVZ77RF37-Y80M4,KVZ77RF37-Y90M4,KVZ77RF37-YEJ63M4,KVZ77RF37-YEJ71M4,KVZ77RF37-YEJ80M4,KVZ77RF37-YEJ90S4,KVZ77RF37-YVP63M4,KVZ77RF37-YVP71M4,KVZ77RF37-YVP80M4,KVZ77RF37-YVP90S4,KVZ77RF37-YVPEJ63M4,KVZ77RF37-YVPEJ71M4,KVZ77RF37-YVPEJ80M4,KVZ77RF37-YVPEJ90S4,KAZ77R37DM63L4,KAZ77R37DM63M4,KAZ77R37DM63MS4,KAZ77R37DM63S4,KAZ77R37DM71D4,KAZ77R37DM71M4,KAZ77R37DM71MS4,KAZ77R37DM71S4,KAZ77R37DM80K4,KAZ77R37DM80M4,KAZ77R37DM80MK4,KAZ77R37DM80N4,KAZ77R37DM80S4,KAZ77R37DM90L4,KAZ77R37DM90M4,KAZ77R37DM90S4,KAZ77R37DR63L4,KAZ77R37DR63M4,KAZ77R37DR63MS4,KAZ77R37DR63S4,KAZ77R37DR71D4,KAZ77R37DR71M4,KAZ77R37DR71MS4,KAZ77R37DR71S4,KAZ77R37DR80K4,KAZ77R37DR80M4,KAZ77R37DR80MK4,KAZ77R37DR80N4,KAZ77R37DR80S4,KAZ77R37DR90L4,KAZ77R37DR90M4,KAZ77R37DR90S4,KAZ77R37DRE63L4,KAZ77R37DRE63M4,KAZ77R37DRE63MS4,KAZ77R37DRE63S4,KAZ77R37DRE71D4,KAZ77R37DRE71M4,KAZ77R37DRE71MS4,KAZ77R37DRE71S4,KAZ77R37DRE80K4,KAZ77R37DRE80M4,KAZ77R37DRE80MK4,KAZ77R37DRE80N4,KAZ77R37DRE80S4,KAZ77R37DRE90L4,KAZ77R37DRE90M4,KAZ77R37DRE90S4,KAZ77R37DRN63L4,KAZ77R37DRN63M4,KAZ77R37DRN63MS4,KAZ77R37DRN63S4,KAZ77R37DRN71D4,KAZ77R37DRN71M4,KAZ77R37DRN71MS4,KAZ77R37DRN71S4,KAZ77R37DRN80K4,KAZ77R37DRN80M4,KAZ77R37DRN80MK4,KAZ77R37DRN80N4,KAZ77R37DRN80S4,KAZ77R37DRN90L4,KAZ77R37DRN90M4,KAZ77R37DRN90S4,KAZ77R37DRS63L4,KAZ77R37DRS63M4,KAZ77R37DRS63MS4,KAZ77R37DRS63S4,KAZ77R37DRS71D4,KAZ77R37DRS71M4,KAZ77R37DRS71MS4,KAZ77R37DRS71S4,KAZ77R37DRS80K4,KAZ77R37DRS80M4,KAZ77R37DRS80MK4,KAZ77R37DRS80N4,KAZ77R37DRS80S4,KAZ77R37DRS90L4,KAZ77R37DRS90M4,KAZ77R37DRS90S4,KAZ77R37DT63L4,KAZ77R37DT63M4,KAZ77R37DT63MS4,KAZ77R37DT63S4,KAZ77R37DT71D4,KAZ77R37DT71M4,KAZ77R37DT71MS4,KAZ77R37DT71S4,KAZ77R37DT80K4,KAZ77R37DT80M4,KAZ77R37DT80MK4,KAZ77R37DT80N4,KAZ77R37DT80S4,KAZ77R37DT90L4,KAZ77R37DT90M4,KAZ77R37DT90S4,KAZ77R37DV63L4,KAZ77R37DV63M4,KAZ77R37DV63MS4,KAZ77R37DV63S4,KAZ77R37DV71D4,KAZ77R37DV71M4,KAZ77R37DV71MS4,KAZ77R37DV71S4,KAZ77R37DV80K4,KAZ77R37DV80M4,KAZ77R37DV80MK4,KAZ77R37DV80N4,KAZ77R37DV80S4,KAZ77R37DV90L4,KAZ77R37DV90M4,KAZ77R37DV90S4,KAZ77R37DVE63L4,KAZ77R37DVE63M4,KAZ77R37DVE63MS4,KAZ77R37DVE63S4,KAZ77R37DVE71D4,KAZ77R37DVE71M4,KAZ77R37DVE71MS4,KAZ77R37DVE71S4,KAZ77R37DVE80K4,KAZ77R37DVE80M4,KAZ77R37DVE80MK4,KAZ77R37DVE80N4,KAZ77R37DVE80S4,KAZ77R37DVE90L4,KAZ77R37DVE90M4,KAZ77R37DVE90S4,KAZ77RF37-Y0.12KW,KAZ77RF37-Y0.12KW,KAZ77RF37-Y0.12KW,KAZ77RF37-Y0.12KW,KAZ77RF37-Y0.18KW,KAZ77RF37-Y0.18KW,KAZ77RF37-Y0.18KW,KAZ77RF37-Y0.18KW,KAZ77RF37-Y0.25KW,KAZ77RF37-Y0.25KW,KAZ77RF37-Y0.25KW,KAZ77RF37-Y0.25KW,KAZ77RF37-Y0.37KW,KAZ77RF37-Y0.37KW,KAZ77RF37-Y0.37KW,KAZ77RF37-Y0.37KW,KAZ77RF37-Y0.55KW,KAZ77RF37-Y0.55KW,KAZ77RF37-Y0.55KW,KAZ77RF37-Y0.55KW,KAZ77RF37-Y0.75KW,KAZ77RF37-Y0.75KW,KAZ77RF37-Y0.75KW,KAZ77RF37-Y0.75KW,KAZ77RF37-Y1.1KW,KAZ77RF37-Y1.1KW,KAZ77RF37-Y1.1KW,KAZ77RF37-Y1.1KW,KAZ77RF37-Y1.5KW,KAZ77RF37-Y1.5KW,KAZ77RF37-Y1.5KW,KAZ77RF37-Y1.5KW,KAZ77RF37-Y63M4,KAZ77RF37-Y71M4,KAZ77RF37-Y80M4,KAZ77RF37-Y90M4,KAZ77RF37-YEJ63M4,KAZ77RF37-YEJ71M4,KAZ77RF37-YEJ80M4,KAZ77RF37-YEJ90S4,KAZ77RF37-YVP63M4,KAZ77RF37-YVP71M4,KAZ77RF37-YVP80M4,KAZ77RF37-YVP90S4,KAZ77RF37-YVPEJ63M4,KAZ77RF37-YVPEJ71M4,KAZ77RF37-YVPEJ80M4,KAZ77RF37-YVPEJ90S4。
K78R38減速電機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.socclo.com/product/list-kxiliejiansuji-cn.html
推薦型號：K78減速機
關鍵詞:GK型減速機配電機一體式_螺旋錐齒輪減速器_K系列減速機_雙出軸減速機_90度減速機_螺旋錐齒輪減速機_GK系列減速機_K系列減速器_雙出軸減速器_90度減速器
K系列齒輪減速馬達型號：K38減速機,K48減速機,K58減速機,K68減速機,K78減速機,K88減速機,K98減速機,K108減速機,K128減速機,K158減速機,K168減速機,K188減速機
K系列直角減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: KHZ77R37 KVZ77R37 KAZ77R37
